svg Export unicode
Posted: Thu Dec 31, 2015 9:09 am
Hello..
I use TeeChart v7.
I used to export SVG.
If the label on the chart of Unicode strings, saving in svg, a Unicode string is broken.
p_cfiChart->GetExport().GetAsSVG().SaveToFile(_T("c:\\svg42b2_tmp.svg"));
I want unbroken unicode string to export SVG.
I look forward to your reply to our inquiry.
Kind regards.
exported SVG
I use TeeChart v7.
I used to export SVG.
If the label on the chart of Unicode strings, saving in svg, a Unicode string is broken.

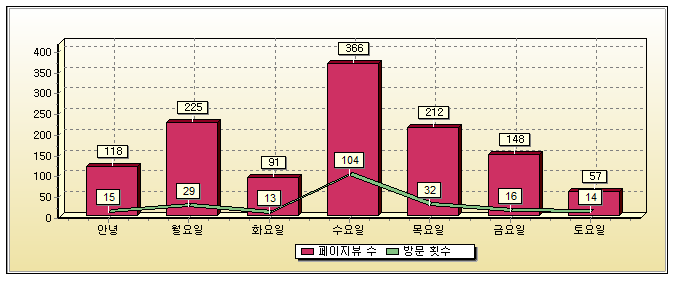

- I want draw
- 제목 없음.png (13.18 KiB) Viewed 11710 times
I want unbroken unicode string to export SVG.
- I want draw
- 제목 없음.png (13.18 KiB) Viewed 11710 times
Kind regards.
exported SVG
Code: Select all
