Axis Title of DEPTH RIGHT not displayed

[walter0316]

Hi
I tried to define the Axis title in the IDE Editor and/or programmatically.
Both are unable to write the Axis Title.
Please help.
Is this a bug?
Thanks
Walter

[Narcís]

Hi Walter,

Code snippet below works fine for me here. Can you please check it works at your end?

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  Series1.FillSampleValues;

  Series1.VertAxis:=aBothVertAxis;
  Series1.HorizAxis:=aBothHorizAxis;

  Chart1.Axes.Bottom.Title.Text:='bottom axis title';
  Chart1.Axes.Top.Title.Text:='top axis title';
  Chart1.Axes.Left.Title.Text:='left axis title';
  Chart1.Axes.Right.Title.Text:='right axis title';
end;

Thanks in advance.

[walter0316]

Please try a 3D chart with the DEPTH Axis right. There the Axis Ti is missing.

[Narcís]

Hi Walter,

Depth axis is not visible by default. You need to enable it:

Code: Select all

  Series1.FillSampleValues;

  Series1.VertAxis:=aBothVertAxis;
  Series1.HorizAxis:=aBothHorizAxis;

  Chart1.Axes.Bottom.Title.Text:='bottom axis title';
  Chart1.Axes.Top.Title.Text:='top axis title';
  Chart1.Axes.Left.Title.Text:='left axis title';
  Chart1.Axes.Right.Title.Text:='right axis title';
  Chart1.Axes.Depth.Title.Text:='depth axis title';

  Chart1.Axes.Depth.Visible:=True;

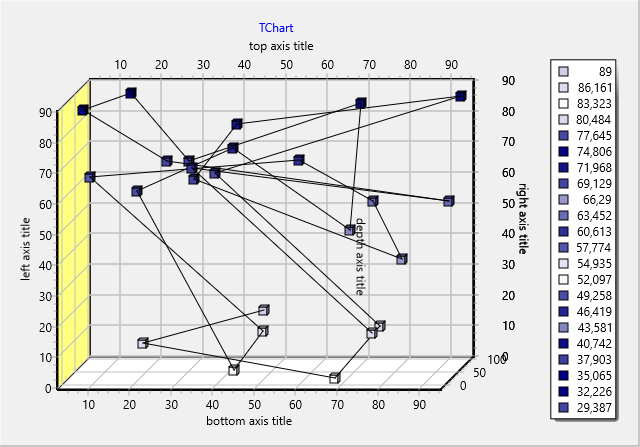

The title is rendered at the wrong position though so I have added it to the bug list: http://bugs.teechart.net/show_bug.cgi?id=1482
