How to set pattern for specific donut slice ?

[amsus2021]

Hi,

I want to set pattern for specific slice in Donut chart. Is its possible ?

I found UsePatterns property but if set they draw all slices with pattern. But I need specific ones.

So, how to select pattern type, foreground and background colors for specific slise ? Maybe using some event ?

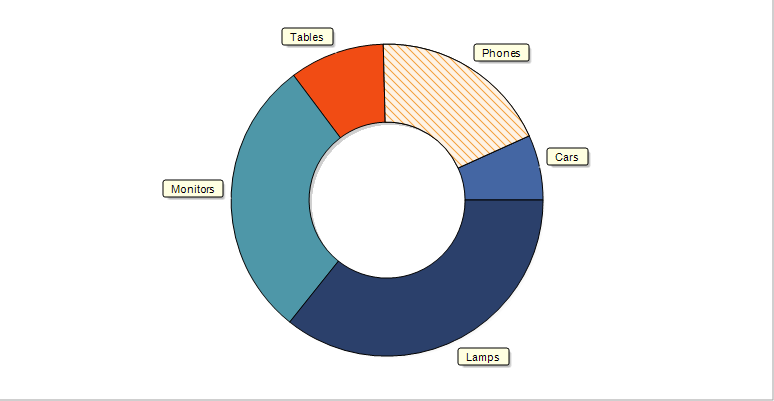

Result should looks like this (made by hand):



Thanks for help !

[Yeray]

Hello,

You can do something similar to the explained here:


Code: Select all

type TDonutSeriesAccess=class(TDonutSeries);

procedure TForm1.FormCreate(Sender: TObject);
begin
  Chart1.AddSeries(TDonutSeries).FillSampleValues(5);

  Chart1.OnAfterDraw:=PatternInDonutSliceAfterDraw;
end;

procedure TForm1.PatternInDonutSliceAfterDraw(Sender: TObject);
var donut: TDonutSeriesAccess;
begin
  if (Chart1.SeriesCount>0) and (Chart1[0] is TDonutSeries) then
  begin
    donut:=TDonutSeriesAccess(Chart1[0]);
    if pie.Count>1 then
    begin
      Chart1.Canvas.Brush.Color:=donut.GetValueColor(1);
      Chart1.Canvas.Brush.Style:=bsFDiagonal;
      donut.DrawPie(1);
    end;
  end;
end;

[amsus2021]

Thank you very mush ! I will try !

[amsus2021]

Its working perfect ! Thank you very much !
