Charts with Bars with Negative values

Post by Ed Dressel » Thu Dec 19, 2024 7:36 pm

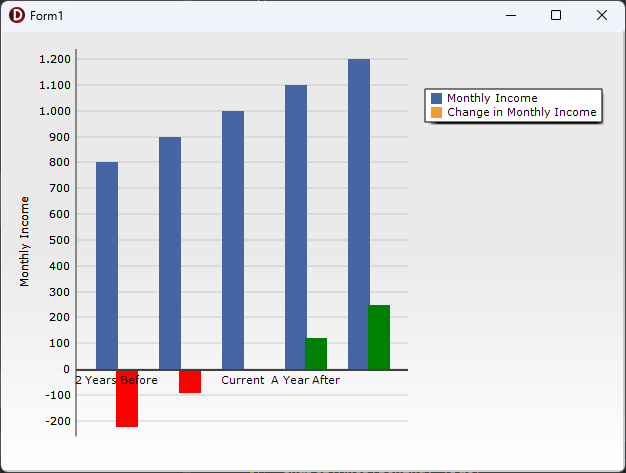

In the attached demo, I have a TChart that has bars, some with negative values.

The image is visible here: https://app.screencast.com/iyBZFNk6yvUsB

I have two items I need help with.

1) For the first red bar with a negative value, there is no margin between the red and the axis--how do I create a margin between the red bar and the line at the bottom?

2) For the left axis, I want the zero value line to be the darker/heavier line, and the other lines to be lighter.

How can I achieve this?

Ed Dressel
Attachments
Bars Negative Values.zip
(6.95 KiB) Downloaded 104 times

Yeray
Site Admin
Site Admin
Posts: 9622
Joined: Tue Dec 05, 2006 12:00 am
Location: Girona, Catalonia
Contact:

Re: Charts with Bars with Negative values

Post by Yeray » Fri Dec 20, 2024 9:29 am

Hello Ed,
Ed Dressel wrote:
Thu Dec 19, 2024 7:36 pm
1) For the first red bar with a negative value, there is no margin between the red and the axis--how do I create a margin between the red bar and the line at the bottom?
You can add some offset to the left axis:

Code: Select all

  Chart1.Axes.Left.MaximumOffset:=10;
  Chart1.Axes.Left.MinimumOffset:=10;
Ed Dressel wrote:
Thu Dec 19, 2024 7:36 pm
2) For the left axis, I want the zero value line to be the darker/heavier line, and the other lines to be lighter.
You can move the Bottom with the PositionPercent property calculating the position of the 0 value in pixels as follows:

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  //...

  Chart1.Axes.Bottom.PositionUnits:=muPixels;
  Chart1.OnBeforeDrawAxes:=AxesBeforeDraw;
  Chart1.Draw;
end;

procedure TForm1.AxesBeforeDraw(Sender: TObject);
begin
  Chart1.Axes.Bottom.PositionPercent:=Chart1.ChartRect.Bottom - Chart1.Axes.Left.CalcPosValue(0);
end;
The problem is that, moving the bottom axis to the middle of the chart, then the labels are drawn behind the bars, and you probably don't want that.
There's a Axes.Behind property you can set to False, but then the left axis grid will also be drawn on top of the bars, which you probably don't want.
Then, the trick is to play with OnBeforeDrawChart and AfterDrawValues events to disable and enable those properties. Ie:

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  //...

  Chart1.OnBeforeDrawChart:=ChartBeforeDraw;
  Series1.AfterDrawValues:=SeriesAfterDraw;
end;

procedure TForm1.ChartBeforeDraw(Sender: TObject);
begin
  Chart1.Axes.Behind:=True;
  Chart1.Axes.Bottom.Texts.Font.Color:=clNone;
  Chart1.Axes.Left.Grid.Visible:=True;
end;

procedure TForm1.SeriesAfterDraw(Sender: TObject);
begin
  Chart1.Axes.Behind:=False;
  Chart1.Axes.Bottom.Texts.Font.Color:=clBlack;
  Chart1.Axes.Left.Grid.Visible:=False;
end;
Best Regards,
ImageYeray Alonso
Development & Support
Steema Software
Av. Montilivi 33, 17003 Girona, Catalonia (SP)
Image Image Image Image Image Image Please read our Bug Fixing Policy

Ed Dressel
Newbie
Newbie
Posts: 12
Joined: Wed Aug 16, 2023 12:00 am

Re: Charts with Bars with Negative values

Post by Ed Dressel » Fri Dec 20, 2024 3:45 pm

Thank you. That works well--but is there any way to move the series labels (e.g. "2 Years Before") below the chart, rather than overwriting the series)?
