Axis Labels Behind Shape Series?

[JNuzzi]

Is there a way to have the labels of an axis show up centered behind (or in front) of the data?
Thanks,
John

[Yeray]

Hello John,

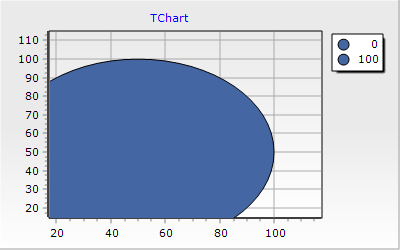

I'm not sure to understand the situation. The shape series is clipped by default in the chartrect so the axes labels are always shown in a simple example for me here:


[JNuzzi]

Hello, thanks for the reply. Yeah, that was a little unclear. What I would like to do is have labels in the chart, not just on the outside axis. For example, running down or across the middle of the chart.

Thank you.

[Yeray]

Hello,

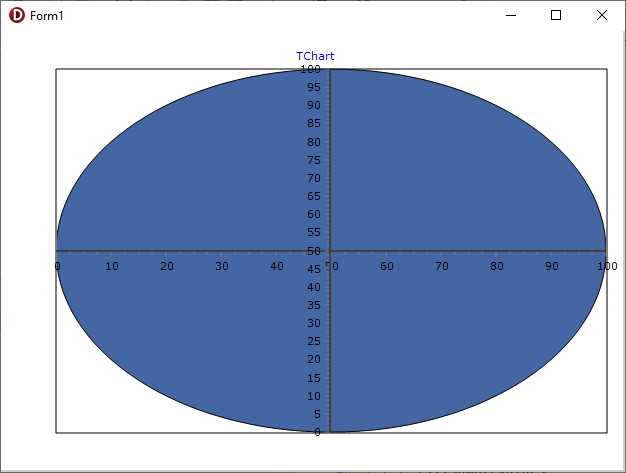

You may be interested on the axes PositionPercent, PositionUnits and the Chart's AxisBehind properties.
Ie:

Code: Select all

uses TeeShape;

procedure TForm1.FormCreate(Sender: TObject);
begin
  with Chart1 do
  begin
    View3D:=False;
    Legend.Hide;
    Gradient.Visible:=False;
    Color:=clWhite;
    Walls.Back.Gradient.Visible:=False;
    Walls.Back.Color:=clWhite;

    with Chart1.AddSeries(TChartShape) do
    begin
      FillSampleValues;
      Color:=OperaPalette[0];
    end;

    Chart1.AxisBehind:=False;
    Chart1.Axes.Bottom.PositionUnits:=muPercent; //muPixels,muPixels;
    Chart1.Axes.Left.PositionUnits:=muPercent; //muPixels,muPixels;
    Chart1.Axes.Bottom.PositionPercent:=50;
    Chart1.Axes.Left.PositionPercent:=50;

    Chart1.Axes.Bottom.Grid.Hide;
    Chart1.Axes.Left.Grid.Hide;
  end;
end;


[JNuzzi]

Perfect, thank you!
