Read Zoomed Values

[jzarech]

Hi Steema,

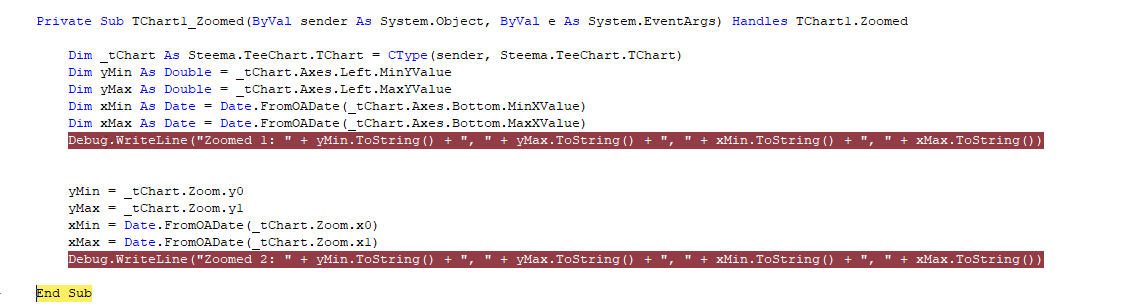

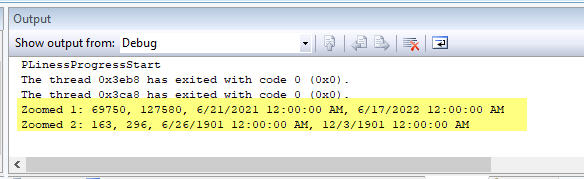

When I zoom into a chart I'd like to get the zoomed MinX , MinY, MaxX, and MaxY values and thought it would be in the Zoomed event but am finding it challenging to figure this out. Please see attached screenshots. I'm doing something wrong.

Thanks as always!
Joseph

[Pep]

Hello,

using the following code works fine. Could you please check?

Code: Select all

        Steema.TeeChart.TChart _chart = new Steema.TeeChart.TChart();
        private void Form1_Load(object sender, EventArgs e)
        {
            Controls.Add(_chart);

            var line = new Steema.TeeChart.Styles.Line(_chart.Chart);
            line.XValues.DateTime = true;

            line.FillSampleValues();

            _chart.Axes.Bottom.Labels.Angle = 90;
            _chart.Zoomed += _chart_Zoomed;
        }

        private void _chart_Zoomed(object? sender, EventArgs e)
        {
            MessageBox.Show("Min YVal:" + _chart.Axes.Left.Minimum.ToString() +
                " | Max YVal:" + _chart.Axes.Left.Maximum.ToString());

            MessageBox.Show("Min XVal:" + DateTime.FromOADate(_chart.Axes.Bottom.Minimum).ToString() +
                " | Max XVal:" + DateTime.FromOADate(_chart.Axes.Bottom.Maximum).ToString());
        }

[jzarech]

Thanks, I will try this.
