Bottom and Custom Vertical Axis Label Start Position

[Priyanka]

Hi Christopher,

I have requirement to disable anti aliasing. I have tried below code.

WebChart1.Chart.Aspect.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.None;

However, it is not working in my case. Please assist.

Thanks in advance.

[Christopher]

I tried it but no luck.

Here is the code I am using with the latest version of TeeChart.dll:

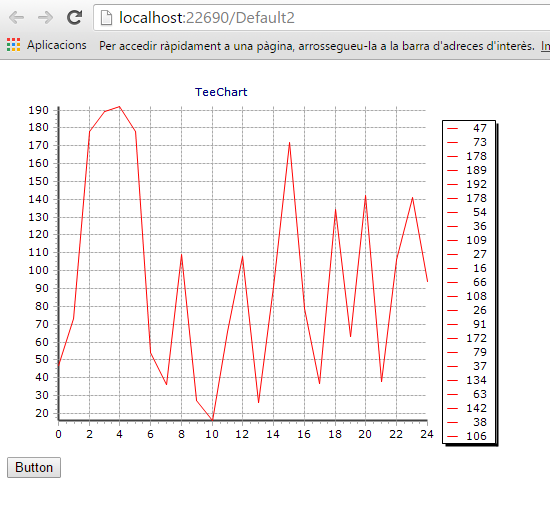

and this is the result:


[Priyanka]

Thanks Christopher.

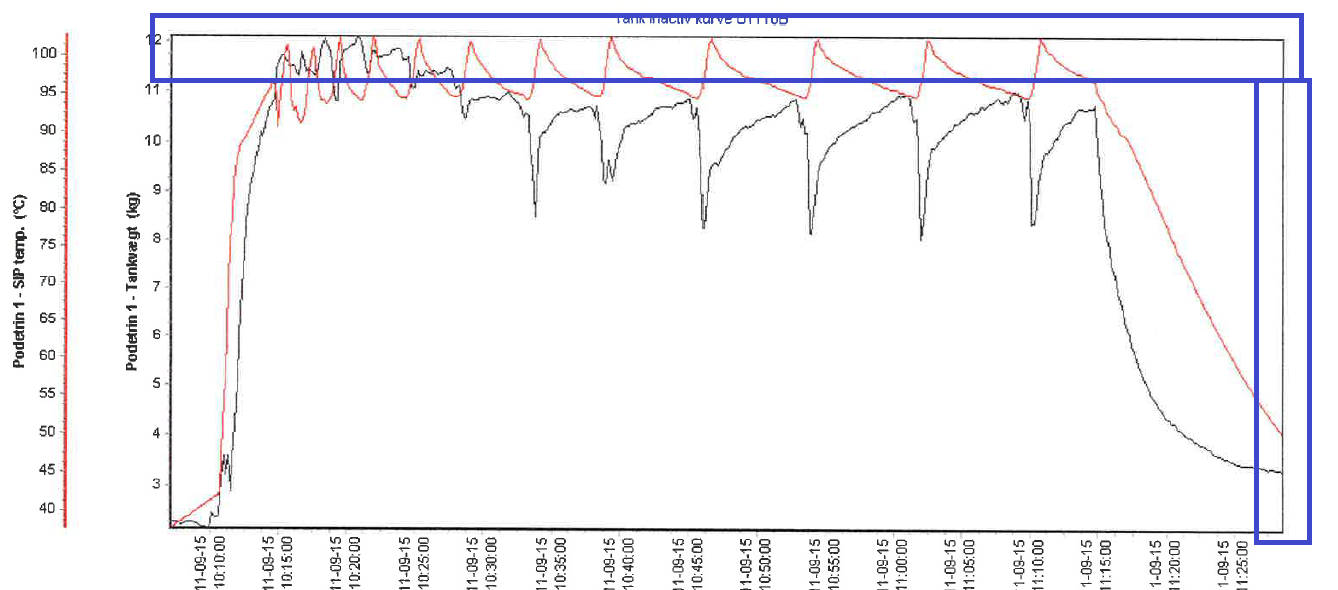

It removed extra borders. However, I need top and right border to only chart area as attached.

[Christopher]

Hello,

However, I need top and right border to only chart area as attached.

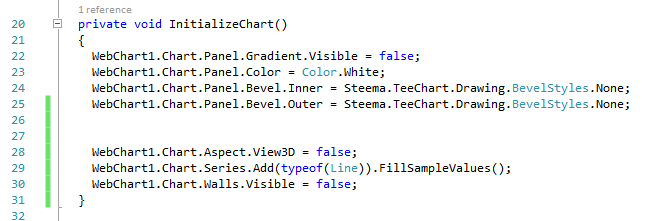

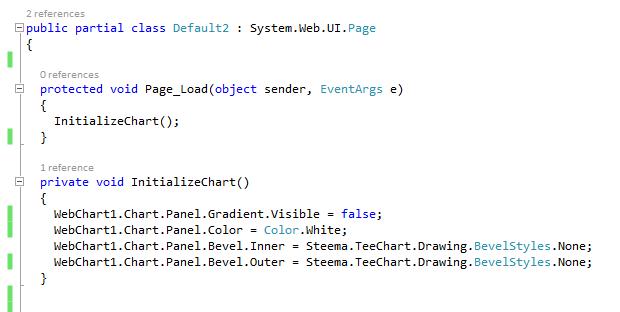

This code:

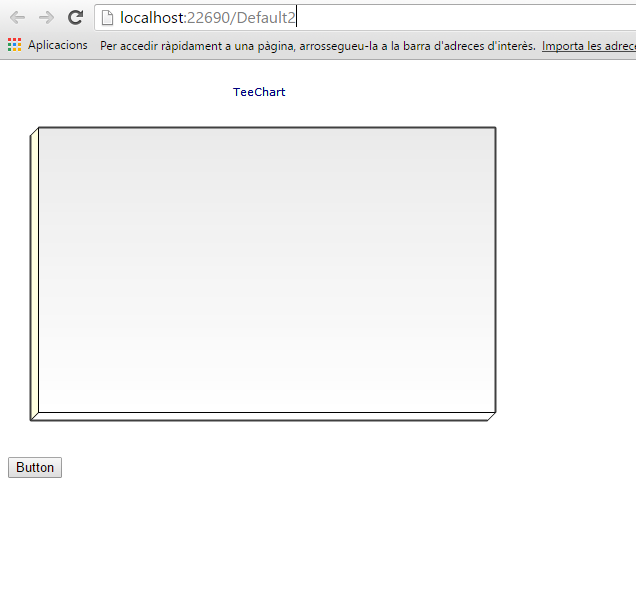

gives me this result, without the borders you mention:


[Priyanka]

Hi Christopher,

I think you got confused. I need top and bottom border to only chart area.

Thanks.

[Christopher]

You might like to try the different variations in this code yourself until you come across the combination that most adapts to your needs:

Code: Select all

  private void InitializeChart()
  {
    WebChart1.Chart.Panel.Gradient.Visible = false;
    WebChart1.Chart.Panel.Color = Color.White;
    WebChart1.Chart.Panel.Bevel.Inner = Steema.TeeChart.Drawing.BevelStyles.None;
    WebChart1.Chart.Panel.Bevel.Outer = Steema.TeeChart.Drawing.BevelStyles.None;


    WebChart1.Chart.Aspect.View3D = false;
    WebChart1.Chart.Series.Add(typeof(Line)).FillSampleValues();

    //#1
    //WebChart1.Chart.Walls.Visible = false;
    //WebChart1.Chart.Axes.Visible = false;

    //#2
    //WebChart1.Chart.Walls.Back.Gradient.Visible = false;
    //WebChart1.Chart.Walls.Back.Color = Color.White;
    //WebChart1.Chart.Walls.Back.Pen.Color = Color.Red;
    //WebChart1.Chart.Axes.Left.AxisPen.Visible = false;
    //WebChart1.Chart.Axes.Bottom.AxisPen.Visible = false;

    //#3
    WebChart1.Chart.Walls.Visible = false;
    WebChart1.Chart[0].VertAxis = VerticalAxis.Both;
    WebChart1.Chart[0].HorizAxis = HorizontalAxis.Both;
    WebChart1.Chart.Axes.Left.AxisPen.Visible = false;
    WebChart1.Chart.Axes.Bottom.AxisPen.Visible = false;
    WebChart1.Chart.Axes.Top.AxisPen.Color = Color.Yellow;
    WebChart1.Chart.Axes.Top.Labels.Visible = false;
    WebChart1.Chart.Axes.Right.AxisPen.Color = Color.Blue;
    WebChart1.Chart.Axes.Right.Labels.Visible = false;
  }

[Priyanka]

Thanks Christopher. I will try it.

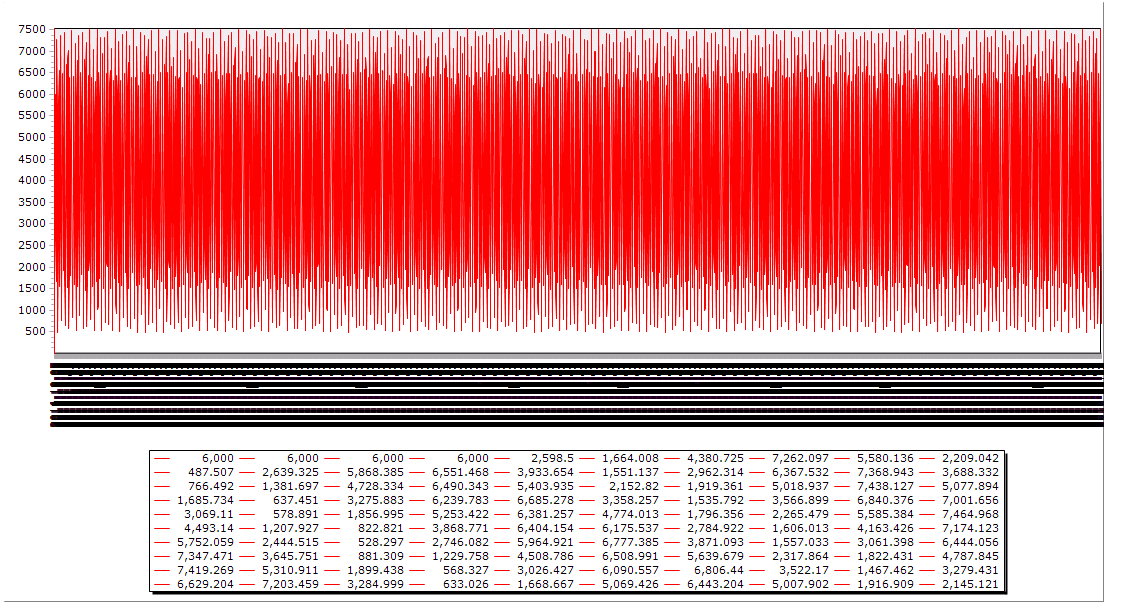

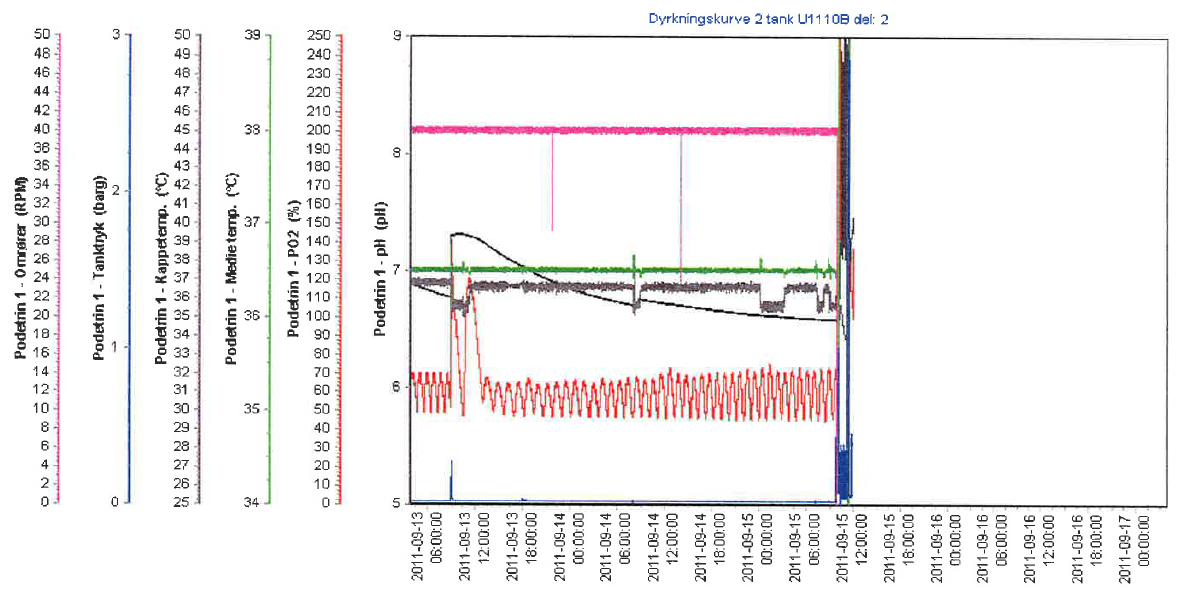

Need your help to implement requirement of showing blank report. As per attached screenshot. We need to draw series for some date range and rest should be blank.

[Christopher]

Need your help to implement requirement of showing blank report. As per attached screenshot. We need to draw series for some date range and rest should be blank.

Can you not simply set the bottom Axis's SetMinMax to a relevant value? Or is the situation more complex than this? If so, how?

[Priyanka]

Hi Christopher,

SetMinMax function doesn't work. Below is the code I am using. However, it is not setting minimum to 0.2 and maximum to 200.

WebChart1.Chart[0].CustomVertAxis.Automatic = false;
WebChart1.Chart[0].CustomVertAxis.SetMinMax(0.2, 200);
WebChart1.Chart[0].CustomVertAxis.Labels.ValueFormat = "##0.##;{##0.##}";

Value format is also set. Not sure why the SetMinMax function is not working.

Need urgent help. Thanks.

[Christopher]

Hello!

This code:

Code: Select all

    protected void Page_Load(object sender, EventArgs e)
    {
      Chart chart = WebChart1.Chart;

      chart.Aspect.View3D = false;
      chart.Series.Add(typeof(Line)).FillSampleValues();
      chart.Series.Add(typeof(Line)).FillSampleValues();
      chart.Panel.MarginLeft = 30;


      Axis axis = chart.Axes.Custom.Add();
      axis.Horizontal = false;
      axis.RelativePosition = -40;
      axis.PositionUnits = PositionUnits.Percent;

      axis.SetMinMax(200, 300);

      chart[1].CustomVertAxis = axis;
    }

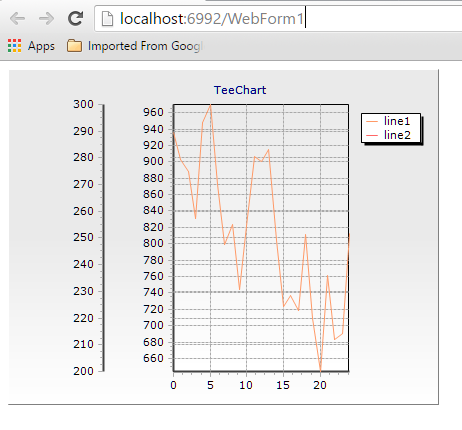

gives me the following (depending on the random values of FillSampleValues, of course):


[Priyanka]

Hi Christopher,

Please taka a look in the attached code.

Appreciate quick help.

[Priyanka]

Hi Christopher,

Any updates on the issue?

[Christopher]

Hi Christopher,

Any updates on the issue?

This is the result of running the code you sent:


I'm afraid to say that I'm not entirely sure what the issue is you refer to. Could you please be more specific?

[Priyanka]

Hi Christopher,

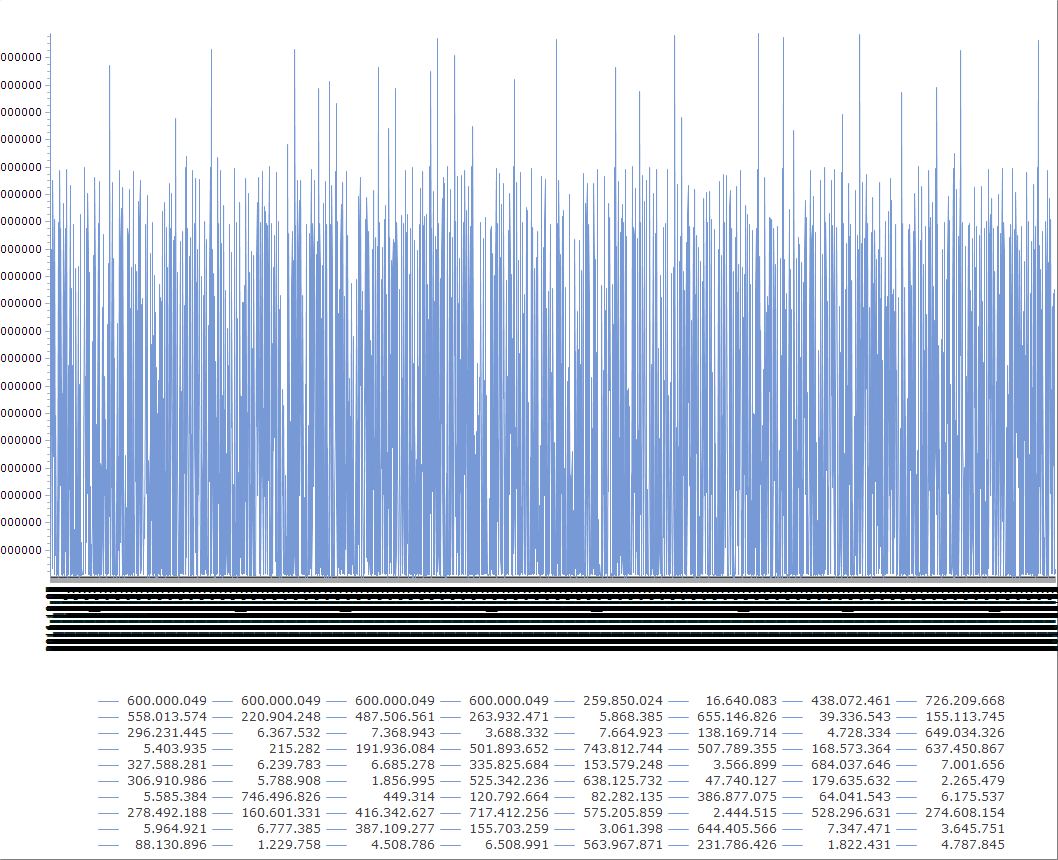

Attached is the output of the code shared by me. Not sure why the below code is not working in case of custom vertical axis

WebChart1.Chart[0].CustomVertAxis.Automatic = false;
WebChart1.Chart[0].CustomVertAxis.SetMinMax(0.3, maxvalue);

Also, need inputs on setting chart resolution and exporting chart in binary format.

Appreciate your help.

[Christopher]

Hi Christopher,

Attached is the output of the code shared by me. Not sure why the below code is not working in case of custom vertical axis

WebChart1.Chart[0].CustomVertAxis.Automatic = false;
WebChart1.Chart[0].CustomVertAxis.SetMinMax(0.3, maxvalue);

It is working here. This code:

Code: Select all

        WebChart1.Chart[0].CustomVertAxis.Automatic = false;
        WebChart1.Chart[0].CustomVertAxis.SetMinMax(maxvalue - (maxvalue / 10), maxvalue);

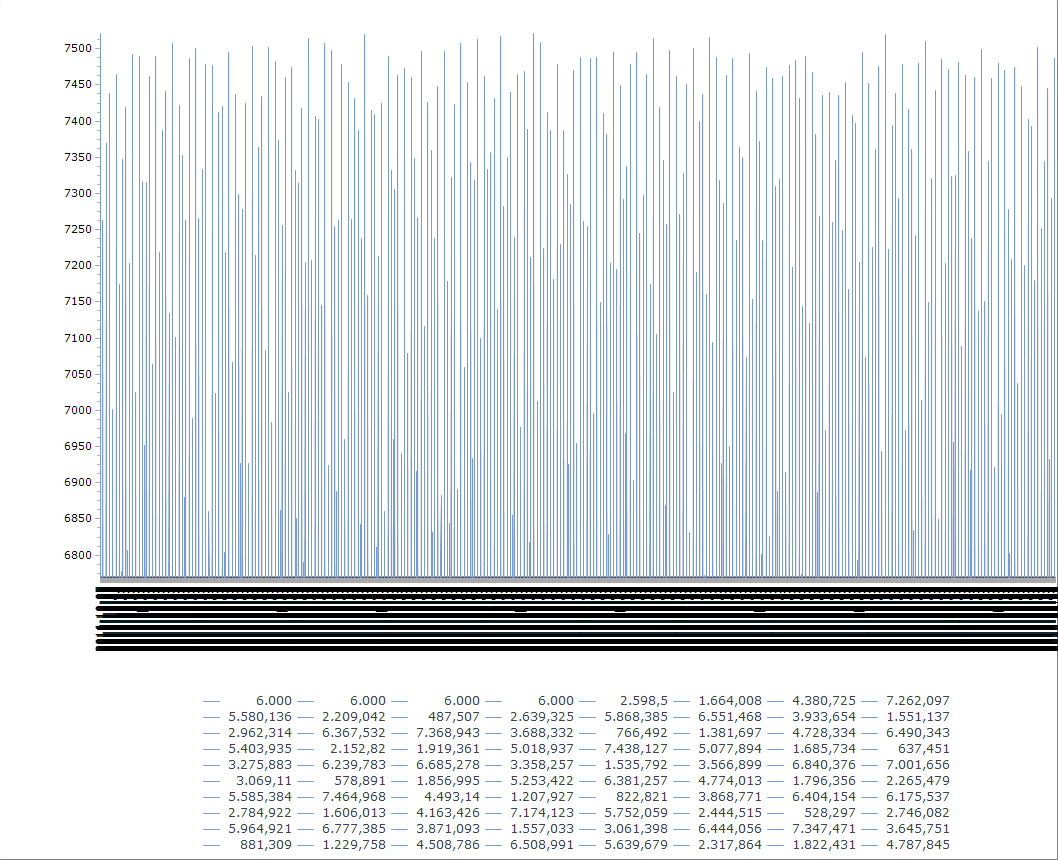

gives me this:


Also, need inputs on setting chart resolution and exporting chart in binary format.

What help do you need, exactly?
