Hiding polygon boundaries in a Map series

[BobG]

Hello,

I'm working on a chart that contains both Map and Line series. I'm trying to turn off any boundaries between the polygons in the map, and have had some success by setting

Code: Select all

map1.Pen.Visible = false;
tChart1.Aspect.SmoothingMode = SmoothingMode.HighSpeed;

The resulting plot looks good, but I don't like the jagged look of the border Line:


.

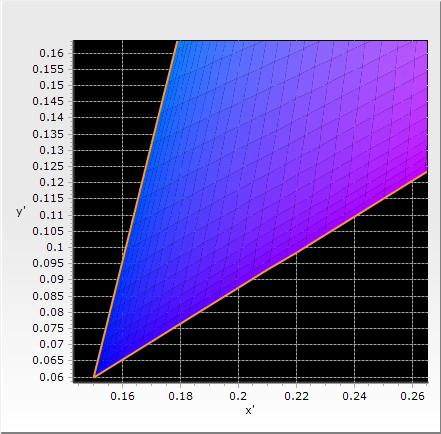

When I change the SmoothingMode to HighQuality or AntiAlias the orange outline looks better but the boundaries of the polygons appear, and I don't want those to show up:


Is it possible to set the smoothing modes of the series individually, or otherwise to get the smoothed outline without the polygon borders?

Thank you very much!
Bob

[Yeray]

Hi Bob,

I've been able to reproduce the issue here with the following code so I've added it to the wish list to be improved in future releases (TF02014662).

Code: Select all

private void InitializeChart()
        {
            chartController1.Chart = tChart1;

            tChart1.Aspect.View3D = false;
            tChart1.Legend.Visible = false;

            Steema.TeeChart.Styles.Map map1 = new Steema.TeeChart.Styles.Map(tChart1.Chart);
            int[] X = new int[4];
            int[] Y = new int[4];

            for (int i = 0; i < 10; i++)
            {
                X[0] = (i % 2);
                X[1] = X[0] + 1;
                X[2] = X[1];
                X[3] = X[0];

                Y[0] = (i / 2);
                Y[1] = Y[0];
                Y[2] = Y[0] + 1;
                Y[3] = Y[1] + 1;

                map1.Add(X, Y, i, "");
            }

            tChart1.Axes.Bottom.Increment = 1;

            map1.Pen.Visible = false;
            tChart1.Aspect.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighSpeed;
        }

        private void checkBox1_CheckedChanged(object sender, EventArgs e)
        {
            if (checkBox1.Checked)
              tChart1.Aspect.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
            else
              tChart1.Aspect.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighSpeed;
        }
