problem with horizontal custom axe
Posted: Wed Jun 02, 2010 9:36 am
by 15655333

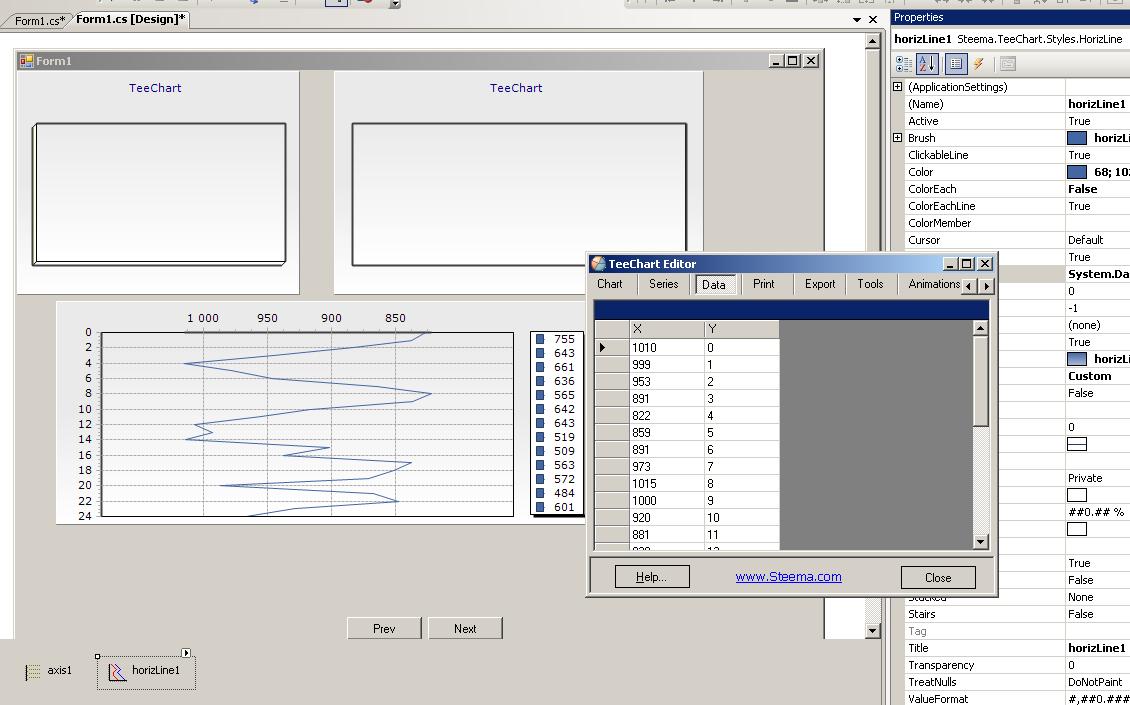

Hello.
Has bug in run and design time.
Add horizontal custom axe and set OTHER SIDE = true and add horizontal line.
In result, labels on custom axe draw in reversed order, but data on line in right order
- chart1.JPG (108.67 KiB) Viewed 12120 times
Re: problem with horizontal custom axe
Posted: Wed Jun 02, 2010 9:39 am
by 15655333
first point - x = 1010 , y = 0, but on chart, according label on custom axe, first point x ~ 800
Re: problem with horizontal custom axe
Posted: Wed Jun 02, 2010 11:19 am
by 10050769
Hello petroV,
I couldn't reproduce your problem using next simple code and last version of TeeChart .Net. Please, modify it, because we can reproduce exactly your problem here?
Code: Select all
private Steema.TeeChart.Styles.HorizLine line;
private void InitializeChart()
{
tChart1.Aspect.View3D = false;
line = new Steema.TeeChart.Styles.HorizLine(tChart1.Chart);
line.FillSampleValues();
Steema.TeeChart.Axis axes1 = new Steema.TeeChart.Axis();
tChart1.Axes.Custom.Add(axes1);
axes1 = tChart1.Axes.Top;
axes1.AxisPen.Color = Color.Red;
line.CustomHorizAxis = axes1;
axes1.OtherSide = true;
}
Thanks,
Re: problem with horizontal custom axe
Posted: Wed Jun 02, 2010 11:36 am
by 15655333
wrong code. After creating custom axe1, you assing axe1 with Top axe (axes1 = tChart1.Axes.Top;)
Code: Select all
axes1 = tChart1.Axes.Top;
axes1.AxisPen.Color = Color.Red;
line.CustomHorizAxis = axes1;
axes1.OtherSide = true;
need also set
axes1.Horizontal = true;
in real time, don't check what real data in point on chart, if you fill line with rundom data
My problem easy reproduce in design time, step by step:
1. drop Chart
In edit mode chart:
2. add horizontal line
3. add custom axe
4. custom axe set horizontal and otherside
5. and set horizontal line axe - custom axe (Custom 0).
Re: problem with horizontal custom axe
Posted: Wed Jun 02, 2010 11:43 am
by 15655333

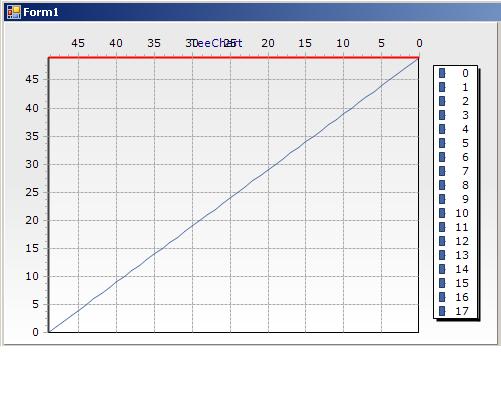

Code for reproduce.
Code: Select all
double x = 0;
double y = 0;
tChart1.Aspect.View3D = false;
Steema.TeeChart.Styles.HorizLine line = new Steema.TeeChart.Styles.HorizLine(tChart1.Chart);
for (int k = 0; k < 50; k++)
{
line.Add(x, y);
x++; y++;
}
Steema.TeeChart.Axis axes1 = new Steema.TeeChart.Axis();
tChart1.Axes.Custom.Add(axes1);
axes1.AxisPen.Color = Color.Red;
line.CustomHorizAxis = axes1;
axes1.OtherSide = true;
axes1.Horizontal = true;
- chart2.JPG (30.24 KiB) Viewed 12032 times
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 8:00 am
by 15655333
help. need fast solution
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 9:52 am
by 10050769
Hello petroV,
Thanks, for your example, I could reproduce your problem and I have added it in bug report list with number [
TF02014929]. We will try to fix it for next maintenance releases for TeeChart.Net. For now, you could use Top axes, so next example:
Code: Select all
private void InitializeChart()
{
double x = 0;
double y = 0;
tChart1.Aspect.View3D = false;
Steema.TeeChart.Styles.HorizLine line = new Steema.TeeChart.Styles.HorizLine(tChart1.Chart);
for (int k = 0; k < 50; k++)
{
line.Add(x, y);
x++; y++;
}
line.CustomHorizAxis = tChart1.Axes.Top;
tChart1.Axes.Top.OtherSide = true;
}
Thanks,
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 10:36 am
by 15655333
thanx
on chart i use some top axes, thats why on top axe is not best solution
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 10:43 am
by narcis
Hi petrov,
If you are not using standard bottom axis you can set it to OtherSide=true and use is as a top axis then.
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 10:59 am
by 15655333
i need 3 top axes with different series ))
very wait next release, i collect 3 bugs
Re: problem with horizontal custom axe
Posted: Thu Jun 03, 2010 11:06 am
by narcis
Hi petrov,
I'm afraid there's little we can do for now then. I recommend you to be aware to this forum or subscribe to our
RSS news feed for new release announcements and what's implemented/fixed on them.
Re: problem with horizontal custom axe
Posted: Wed Jun 09, 2010 3:36 pm
by 15653680
Hi Narcís
I have the same problem here.
Can you please tell me the date of the next release.
I have to plan our approach. Maybe i have to downgrade to v2009!
Re: problem with horizontal custom axe
Posted: Thu Jun 10, 2010 7:26 am
by narcis
Hi sb_giag,
A date hasn't been fixed but I think it shouldn't take long. I'd expect it to be out during the second half of June. It will be announced in this forum.
Re: problem with horizontal custom axe
Posted: Thu Jun 10, 2010 9:07 am
by 15653680
Hi Nacrís
There are problems with logarithmic custom y-axis in the 2010 Version too. (eg 0.0 and 1.0 labels are drawn on the same position, on top of each other).
We are downgrading right now to V 2009 bec. we cannot wait for the new release.
thanks
Stefan
Re: problem with horizontal custom axe
Posted: Mon Jun 14, 2010 1:41 pm
by yeray
Hi Stefan and petroV,
The bug [TF02014929] has been fixed so it should work as expected in the next maintenance release.
