Change first tick value: Circular gauge

[bryber]

Hi,

Is there a way I could change the Minimum Tick value on the circular gauge?
I am using VB.net.

For example, I would like my gauge to have a range from -15 to 115, but I want the first tick value start at 0, and then increment every 20.

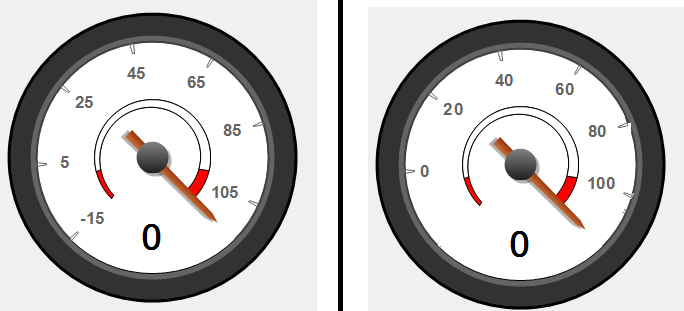

What i have now is pictured on the left, and what I would like to have is pictured on the right. (just edited the first in paint)


Thanks for the help,
Bryan

[Sandra]

Hello Bryan,

I recommend you, change values Minimum and Maximum of your gauge Series and modify the Increment of Left axis as do in next simple code:

Code: Select all

        private void InitializeChart()
        {
            Steema.TeeChart.Styles.CircularGauge gauges1 = new CircularGauge(tChart1.Chart);
            gauges1.Minimum = -15;
            gauges1.Maximum = 115;
 private void button2_Click(object sender, EventArgs e)
        {
            tChart1.Axes.Left.Increment = 20;
            (tChart1[0] as Steema.TeeChart.Styles.CircularGauge).Minimum = 0;

        }
        }

Can you please, tell us if previous code works as you expected?

I hope will helps.

Thanks,

[bryber]

No, That only set the new minimum value to 0, so the whole gauge just starts at 0 instead of starting at -15

I have solved this by just disabling the Automatic Ticks and Labels, and drawing my own on the AfterDraw Method.

Thanks for the response, you can consider this topic solved.

-Bryan

[Sandra]

Hello Bryan,

Thanks for your information. I am glad that you can find a solution for your problem.

Thanks,
