Posted: **Fri Feb 28, 2014 1:36 pm**

Hi Steema Support,

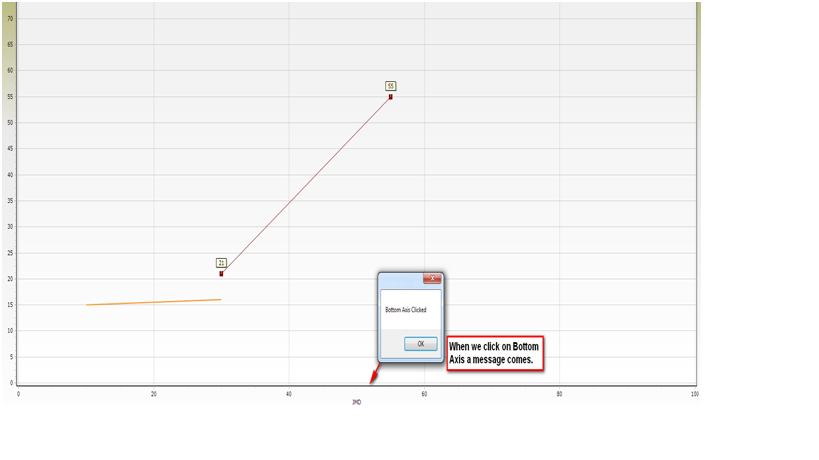

How can get the event of Axis as shown in fig.

: Untitled.png (39.75 KiB) Viewed 4983 times

When we click or double click on Bottom Axis it Should raise a Message to showing that Bottom axis clicked .
It will so helpful for us if you please provide any alternative solution.

Thanks in advance.

Thanks and Regards
Planoresearch

Posted: **Fri Feb 28, 2014 3:47 pm**

amol wrote:When we click or double click on Bottom Axis it Should raise a Message to showing that Bottom axis clicked .
It will so helpful for us if you please provide any alternative solution.

Of course. Please try code such as the following:

Code: Select all

   private void InitializeChart()
    {
      tChart1.Series.Add(typeof(Bar)).FillSampleValues();
      tChart1.MouseDown += tChart1_MouseDown;
    }

    void tChart1_MouseDown(object sender, MouseEventArgs e)
    {
      if (tChart1.Axes.Bottom.Clicked(e.X, e.Y))
      {
        tChart1.Zoom.Active = false;
        MessageBox.Show("Bottom axis clicked!");
      }
      else
      {
        tChart1.Zoom.Active = true;
      }
    }
