Hello :
Now I want to draw a graphic, which bottom Axis will be divded into 256 cells, and one cell should be the minimum unit. Each bar will occupy a few of cell units with different color and different name.
I reference the demo "Sales vs Price " , use area to draw bar and attach the customed lable. However I still want to show more on the bottom axis, that is cell Id.
So would you please tell me it is possible to let bottom axis with two set lables show simultaneously? And as another possible workaround, use the top axis as the axis to show the cell id is also OK for me. But I fail to show the Top Axis.
Attachment is my form1.cs and form1.designer.cs of my demo project.
Ying-Hui
Two Bottoms Axes
Two Bottoms Axes
- Attachments
-

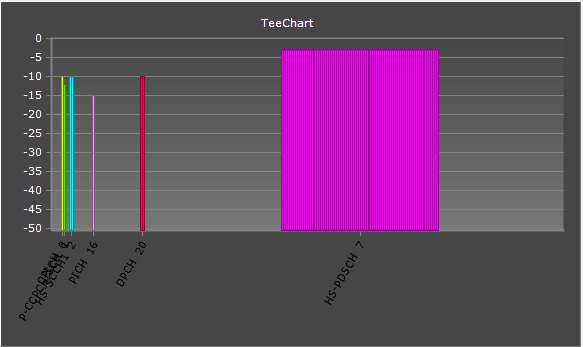

- Chan demo.jpg (34.46 KiB) Viewed 6672 times
-
Christopher
- Guru
- Posts: 1603
- Joined: Fri Nov 15, 2002 12:00 am
Re: Two Bottoms Axes
I can't see these attachments in your post - could you please put them in a *.zip file and post them again?YingHui wrote:Attachment is my form1.cs and form1.designer.cs of my demo project.
Best Regards,
| Christopher Ireland / Development & Support Steema Software Avinguda Montilivi 33, 17003 Girona, Catalonia Tel: 34 972 218 797 http://www.steema.com |
| Instructions - How to post in this forum |
Re: Two Bottoms Axes
Hello:
Here is the attachment.
Thanks!
Ying-Hui
Here is the attachment.
Thanks!
Ying-Hui
- Attachments
-
- demo.rar
- (3.84 KiB) Downloaded 592 times
Re: Two Bottoms Axes
Hello:
Finally, we decide to only show the cell id on the bottom axis. so you can ignore this question if you'd like.
Ying-Hui
Finally, we decide to only show the cell id on the bottom axis. so you can ignore this question if you'd like.
Ying-Hui
