Posted: **Fri Oct 09, 2015 7:38 am**

Hi steema,
we have some issues related to Scrollpager tool of Tchart given as below,
We want to show Left and Right axis on Scrollpager as shown in Tchart.
Series1 Y axis is Left.
Series2 Y axis is Right.
We want to show both axis of Series1 and Series2 in ScrollPager also.

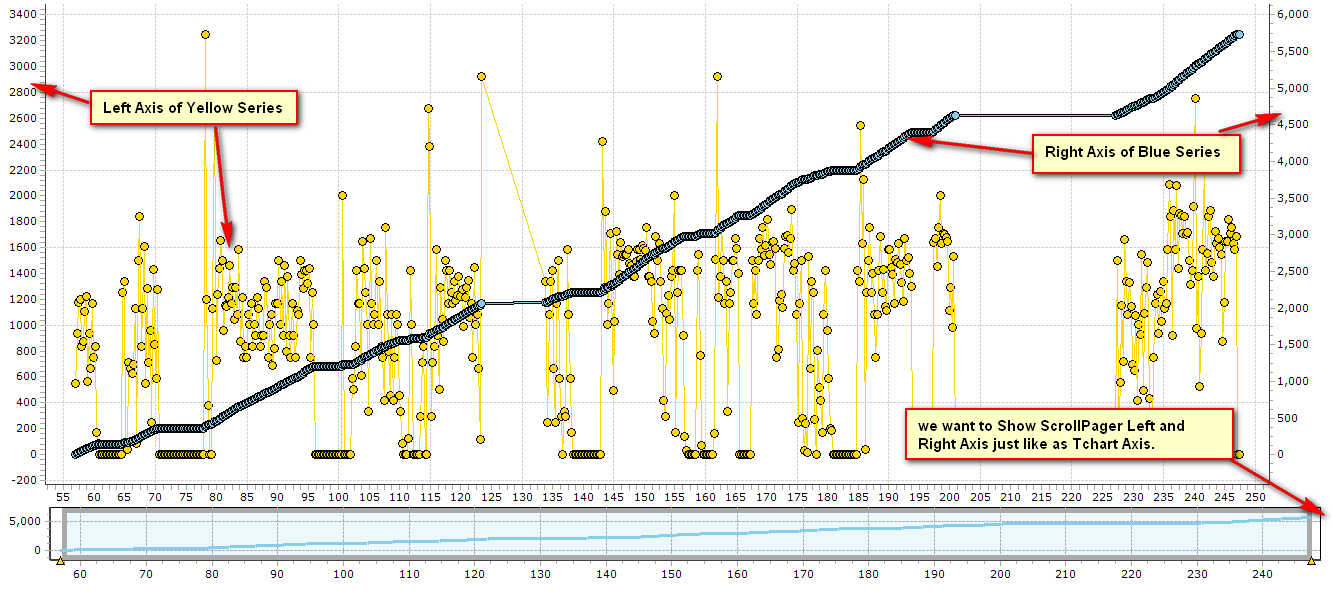

: image 1; LeftScrollpager.png (63.8 KiB) Viewed 9125 times

Thanks in advance.

Thanks

Posted: **Fri Oct 09, 2015 12:59 pm**

amol wrote: We want to show both axis of Series1 and Series2 in ScrollPager also.

You could try:

Code: Select all

    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      Line series1 = new Line(tChart1.Chart);
      Line series2 = new Line(tChart1.Chart);

      series1.FillSampleValues(400);
      series2.FillSampleValues(400);

      series2.VertAxis = VerticalAxis.Right;

      ScrollPager tool = new ScrollPager(tChart1.Chart);
      tool.Series = series1;

      tool.SubChartTChart[0].VertAxis = VerticalAxis.Both;
    }

Please note that the ScrollPager tool only works with one series.

Posted: **Sat Oct 10, 2015 8:11 am**

Thanks For Reply,

But we have one more query given as below,

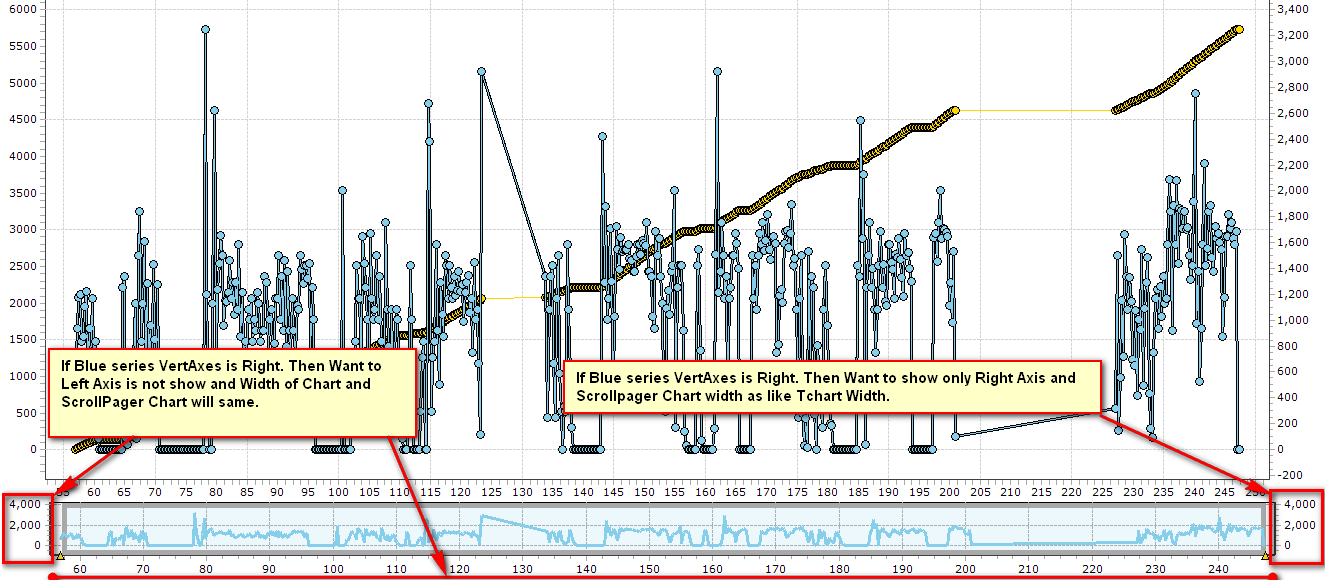

if Series 2 Vertaxis property is Right then the Left Axis will be not show and Width of ScrollPager will also not change.

: Image 1; axis1.png (65.51 KiB) Viewed 9111 times

Thanks in advance.

Posted: **Tue Oct 13, 2015 2:09 pm**

Hello,

In the latest version of TeeChart.dll, the following code:

Code: Select all

    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      Line series1 = new Line(tChart1.Chart);
      Line series2 = new Line(tChart1.Chart);

      series1.FillSampleValues(400);
      series2.FillSampleValues(400);

      series2.VertAxis = VerticalAxis.Right;

      ScrollPager tool = new ScrollPager(tChart1.Chart);
      tool.Series = series1;

      tool.SubChartTChart[0].VertAxis = VerticalAxis.Right;
    }

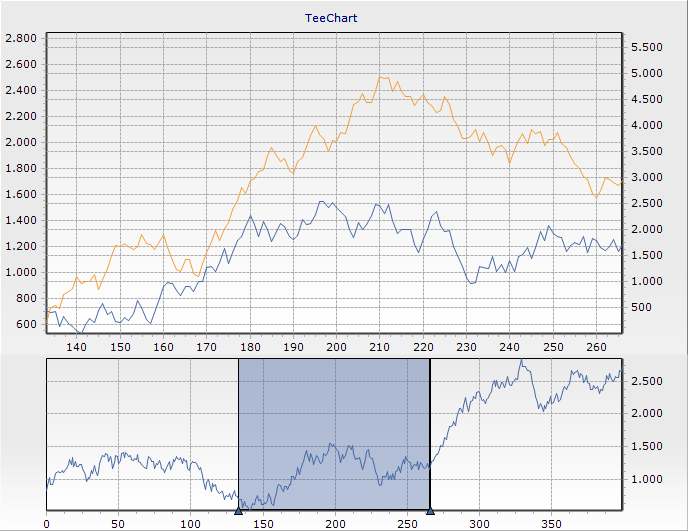

gives the following chart:

: export635803421111562453.png (44.46 KiB) Viewed 9060 times
