Posted: **Thu Jan 28, 2016 11:11 am**

Hi Stemma support,
We are attaching a demo in which we are using line series with stair property to true. If we click on Inverted button, then chart bottom axis got inverted. So with respected to the axis line series must also be changed (or inverted), but it does not invert line respectively.

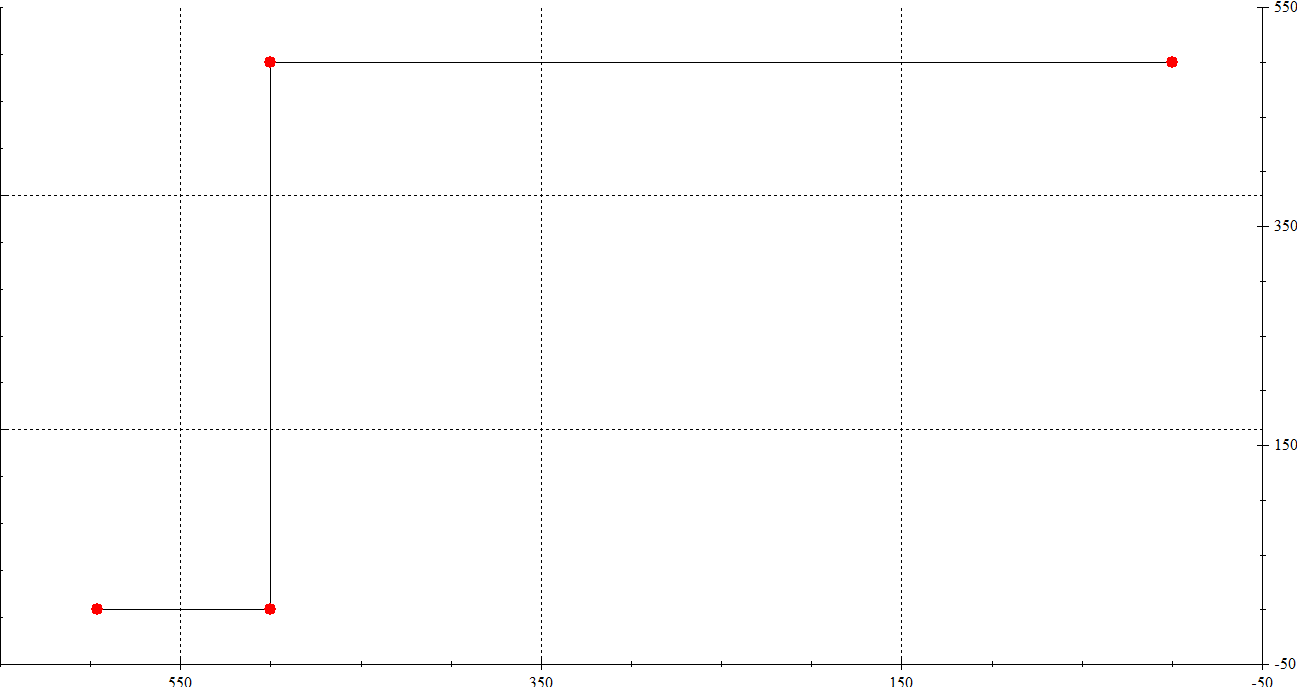

As shown in image below after inverting axis line changed but this is not correct.

: But after inverting it shows like this that is not correct.; img_2.png (15.97 KiB) Viewed 7949 times

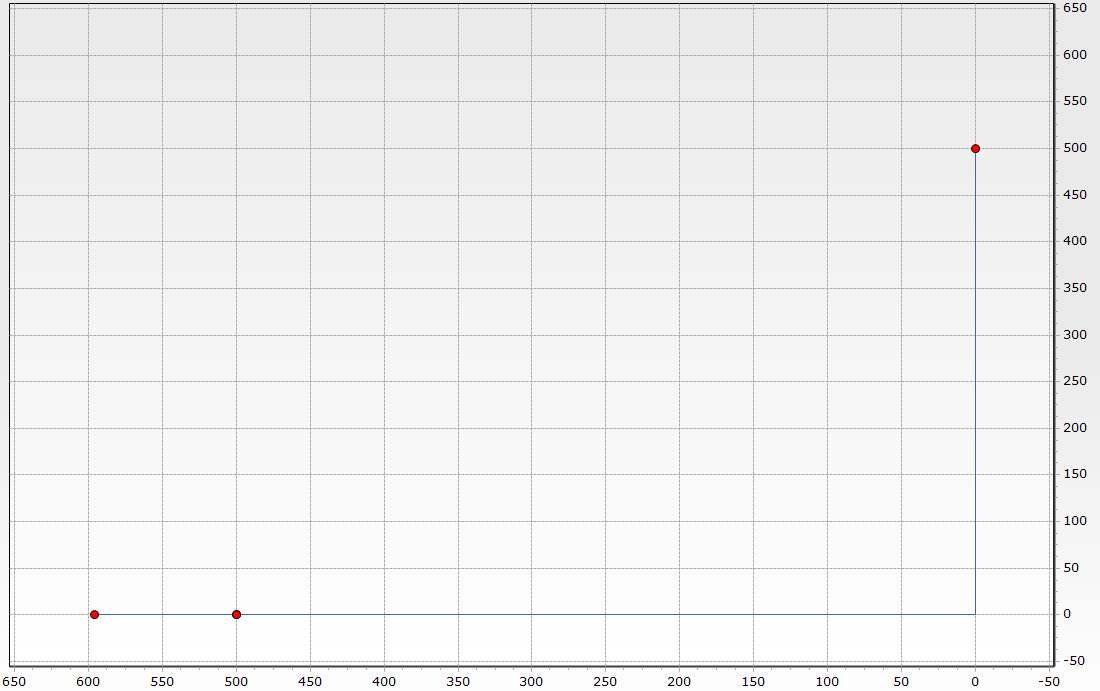

After inverting axis it must be like this

: it must be like this; img_3.png (7.51 KiB) Viewed 7947 times

Please provide any solution for the same
Thanks in advance.

Posted: **Sat Jan 30, 2016 5:41 am**

Hi Steema Support,
we are waiting for your Reply.
Thanks .

Posted: **Mon Feb 01, 2016 11:36 am**

amol wrote: As shown in image below after inverting axis line changed but this is not correct.

It is one possibility. The other is to use code similar to this:

Code: Select all

    Line line1;
    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      line1 = new Line(tChart1.Chart);

      line1.Add(0, 500);
      line1.Add(500, 0);
      line1.Add(600, 0);
      line1.Stairs = true;
      tChart1.Axes.Left.MaximumOffset = 20;
      tChart1.Axes.Left.MinimumOffset = 20;
      tChart1.Axes.Bottom.MaximumOffset = 20;
      tChart1.Axes.Bottom.MinimumOffset = 20;
    }

    private void button4_Click(object sender, EventArgs e)
    {
      tChart1.Axes.Bottom.Inverted = !tChart1.Axes.Bottom.Inverted;
      line1.InvertedStairs = !line1.InvertedStairs;
    }
