Controlling Header/Axis visibility

[AuerAhellwig]

Dear Steema team,
How to control the visibility e.g. of Header and axes?

E.g. I'm trying this:

Code: Select all

TChart.CurrentTheme = ThemeType.Flat;
TChart.Header.Visible = false;
TChart.Axes.Left.Visible = true;
TChart.Axes.Left.AxisPen.Visible = true;
TChart.Axes.Right.Visible = true;
TChart.Axes.Right.AxisPen.Visible = true;

But the header saying "TeeChart" is showing nevertheless. Also, only the bottom axis is visible.

Setting Axis.XXX.Visible to true worked in previous releases, but I'm experiencing these issues now in release 4.1.2015.12160 (WPF version).

Thanks!
Ansgar

[Christopher]

Using the following code with TeeChart.WPF.dll v.4.1.2015.12160

Code: Select all

    private void InitializeCharts()
    {
    }

    private void button_Click(object sender, RoutedEventArgs e)
    {
      tChart1.CurrentTheme = ThemeType.Opera;
      tChart1.Header.Visible = false;
      tChart1.Axes.Left.Visible = true;
      tChart1.Axes.Left.AxisPen.Visible = true;
      tChart1.Axes.Right.Visible = true;
      tChart1.Axes.Right.AxisPen.Visible = true;
    }

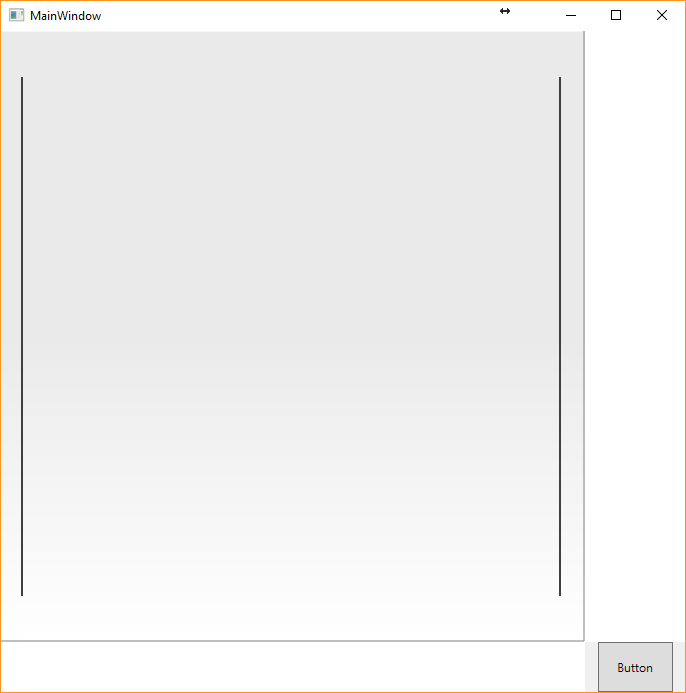

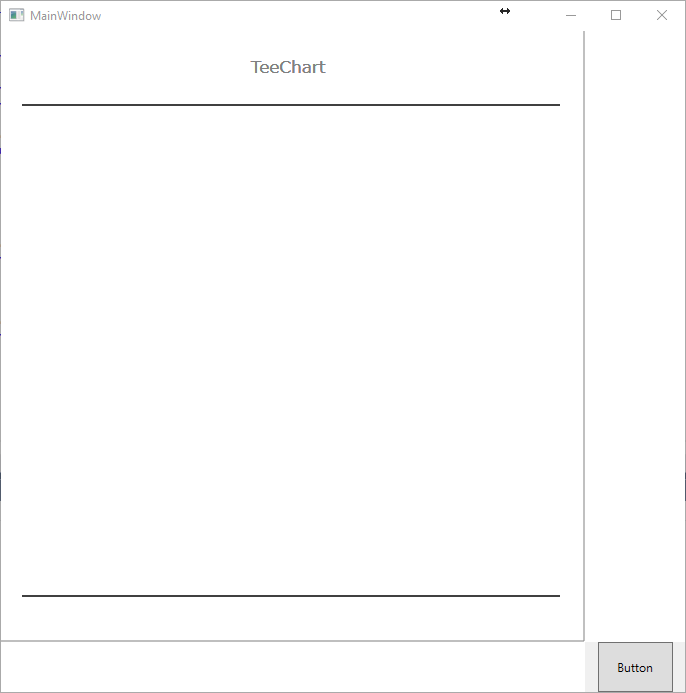

I get the following two images:


and


do you get the same results?

[AuerAhellwig]

Using the following code with TeeChart.WPF.dll v.4.1.2015.12160

...........

do you get the same results?

Dear Christopher,
sorry for my delayed reply.

Using your example, I get the same results.
I can also make the bottom and top axes appear by setting .Visible and .AxisPen.Visible to true for those axes.
But if I now add a series (e.g. FastLine) to the chart, the right and top axes disappear again.

Code: Select all

void Button_OnClick(object sender, RoutedEventArgs e)
{
    tChart1.CurrentTheme = ThemeType.Opera;
    tChart1.Header.Visible = false;
    tChart1.Axes.Left.Visible = true;
    tChart1.Axes.Left.AxisPen.Visible = true;
    tChart1.Axes.Right.Visible = true;
    tChart1.Axes.Right.AxisPen.Visible = true;

    tChart1.Axes.Bottom.Visible = true;
    tChart1.Axes.Bottom.AxisPen.Visible = true;
    tChart1.Axes.Top.Visible = true;
    tChart1.Axes.Top.AxisPen.Visible = true;

    Line line = new Line(tChart1.Chart);
    line.Add(0.0, 0.0);
    line.Add(1.0, 5.0);
    line.Add(4.0, 2.0);
    line.Add(5.0, 0.0);
	// only left and bottom axis are now visible
}

[Christopher]

But if I now add a series (e.g. FastLine) to the chart, the right and top axes disappear again.

To get those axes to display they need to be associated to a series, e.g.

Code: Select all

      line.HorizAxis = HorizontalAxis.Both;
      line.VertAxis = VerticalAxis.Both;

[AuerAhellwig]

Dear Christopher,

thanks, I think I got it working now.

By the way, when setting CurrentTheme=ThemeType.Flat in this simple example application, I get a NullReferenceException inside TeeChart.WPF.dll, is this supposed to happen?

[Christopher]

Hello,

By the way, when setting CurrentTheme=ThemeType.Flat in this simple example application, I get a NullReferenceException inside TeeChart.WPF.dll, is this supposed to happen?

No, it isn't. I discovered this issue a few weeks ago and it will not happen in the next maintenance release. Unfortunately there is no simple workaround to the issue, apologies for the inconvenience caused.
