Horiztal Bar Top Axis and Custom Y axis
Posted: Wed Aug 17, 2016 3:35 pm
by 9642129
Hi

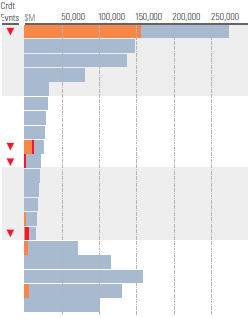

I am trying to achieve this.
- graph-loan-cohort.png (4.61 KiB) Viewed 15629 times
I am facing below challenges
1)Can i show a custom y axis as you can see in image little *Red* V icons
2) Also is there a way i can shade gray couple horizontal bars e.g i want to shade alternate 5 bars
This is i am able to achieve.
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Thu Aug 18, 2016 11:01 am
by Christopher
Hello,
Very roughly, you could start by something a little like this:
Code: Select all
Steema.TeeChart.Styles.HorizBar hBar;
Steema.TeeChart.Tools.GridBand band;
private void InitializeChart()
{
tChart1.Aspect.View3D = false;
tChart1.Legend.Visible = false;
hBar = new HorizBar(tChart1.Chart);
hBar.FillSampleValues(20);
hBar.Marks.Visible = false;
band = new GridBand(tChart1.Chart);
band.Axis = tChart1.Axes.Left;
band.Band1.Color = Color.White;
band.Band2.Color = Color.LightGray;
tChart1.Panel.MarginLeft = 10;
Axis leftAxis = tChart1.Axes.Left;
leftAxis.Increment = 5;
leftAxis.AxisPen.Visible = false;
leftAxis.Labels.Font.Color = Color.Transparent;
leftAxis.Ticks.Visible = false;
leftAxis.MinorTicks.Visible = false;
tChart1.AfterDraw += TChart1_AfterDraw;
}
private void TChart1_AfterDraw(object sender, Graphics3D g)
{
g.Pen.Color = Color.Red;
g.HorizontalLine(0, tChart1.Axes.Bottom.IStartPos, tChart1.Axes.Left.IStartPos);
g.TextOut(20, tChart1.Axes.Left.IStartPos - 12, "text");
int fourthBar = hBar.CalcYPos(4);
g.Brush.Color = Color.Red;
g.Triangle(new Point(30, fourthBar), new Point(40, fourthBar), new Point(35, fourthBar + 10), 0);
}
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Thu Aug 18, 2016 2:30 pm
by 9642129
Thanks Chris for your help.
Is there a way i can cover exactly 5 bars by gridband. As of now Gridband start middle of ticks
Also i am not able to get rid of bottom axes and the spaces highligted in Red
Note: Left Axis ticks are temporary
Code: Select all
Chart chart = param.ChartInstance;
TChart tchart = param.TeeChart;
tchart.AfterDraw += tchart_AfterDraw;
tchart.Aspect.View3D = false;
chart.Axes.Custom.Clear();
for (int i = 0; i < 3; i++)
{
Steema.TeeChart.Styles.HorizBar loanBar = new HorizBar(chart);
// loanBar.BarHeightPercent = 100;
//Bar mstarForecastedLosses = new Bar(chart);
//Bar mstarBearishLossesBar = new Bar(chart);
loanBar.FillSampleValues(20);
//mstarForecastedLosses.FillSampleValues(4);
//mstarBearishLossesBar.FillSampleValues(4);
loanBar.MultiBar = Steema.TeeChart.Styles.MultiBars.Stacked;
// loanBar.SideMargins = false;
loanBar.Legend.Visible = false;
loanBar.Marks.Visible = false;
// mstarForecastedLosses.MultiBar = Steema.TeeChart.Styles.MultiBars.Stacked;
// mstarBearishLossesBar.MultiBar = Steema.TeeChart.Styles.MultiBars.Stacked;
loanBar.VertAxis = Steema.TeeChart.Styles.VerticalAxis.Left;
loanBar.HorizAxis = Steema.TeeChart.Styles.HorizontalAxis.Top;
}
chart.Header.Visible = false;
// chart.Panel.Color = Color.Blue;
// chart.Panel.BorderRound = 5;
//chart.Panel.MarginBottom = 0D;
//chart.Panel.MarginLeft = 4.0D;
//chart.Panel.MarginRight = 0D;
//chart.Panel.MarginTop = 0D;
//chart.Panel.MarginUnits = Steema.TeeChart.PanelMarginUnits.Pixels;
Axis top = new Axis(true, false, chart);
chart.Axes.Custom.Add(top);
top.Grid.Visible = true;
band = new GridBand(chart);
band.Axis = tchart.Axes.Left;
band.Band1.Color = Color.White;
band.Band2.Color = Color.LightGray;
tchart.Panel.MarginLeft = 7;
Axis leftAxis = tchart.Axes.Left;
leftAxis.Increment = 5;
leftAxis.AxisPen.Visible = false;
leftAxis.Labels.Font.Color = Color.Blue;
leftAxis.Ticks.Visible = true;
leftAxis.MinorTicks.Visible = true;
leftAxis.Grid.Visible = true;
Axis bottomAxis = tchart.Axes.Bottom;
bottomAxis.AxisPen.Color = Color.Transparent;
bottomAxis.AxisPen.Visible = false;
bottomAxis.Labels.Font.Color = Color.Transparent;
bottomAxis.Ticks.Visible = false;
bottomAxis.MinorTicks.Visible = false;
bottomAxis.Grid.Visible = false;
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Fri Aug 19, 2016 10:46 am
by Christopher
Hello,
You're very welcome.
Possibly the quickest way to achieve this is again to draw elements on the chart, e.g.
Code: Select all
Steema.TeeChart.Styles.HorizBar hBar;
private void InitializeChart()
{
tChart1.Aspect.View3D = false;
tChart1.Legend.Visible = false;
hBar = new HorizBar(tChart1.Chart);
hBar.FillSampleValues(20);
hBar.Marks.Visible = false;
tChart1.Panel.MarginLeft = 10;
tChart1.Axes.Left.Visible = false;
tChart1.AfterDraw += TChart1_AfterDraw;
tChart1.BeforeDrawAxes += TChart1_BeforeDrawAxes;
}
private List<int> val = new List<int>();
private void TChart1_BeforeDrawAxes(object sender, Graphics3D g)
{
val.Clear();
for (int i = 1; i < hBar.Count; i+=5)
{
double middle = (hBar.YValues[i] - hBar.YValues[i - 1]) / 2.0;
val.Add(hBar.CalcYPosValue(hBar.YValues[i - 1] - middle));
}
Rectangle r;
for (int i = 1; i < val.Count; i++)
{
Color col = i % 2 == 0 ? Color.White : Color.LightGray;
g.Brush.Color = col;
g.Pen.Color = col;
r = Utils.FromLTRB(tChart1.Axes.Bottom.IStartPos, val[i - 1], tChart1.Axes.Bottom.IEndPos, val[i]);
g.Rectangle(r);
}
}
private void TChart1_AfterDraw(object sender, Graphics3D g)
{
g.Pen.Color = Color.Red;
g.HorizontalLine(0, tChart1.Axes.Bottom.IStartPos, tChart1.Axes.Left.IStartPos);
g.TextOut(20, tChart1.Axes.Left.IStartPos - 12, "text");
int fourthBar = hBar.CalcYPos(4);
g.Brush.Color = Color.Red;
g.Triangle(new Point(30, fourthBar), new Point(40, fourthBar), new Point(35, fourthBar + 10), 0);
}
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Mon Aug 22, 2016 3:46 pm
by 9642129

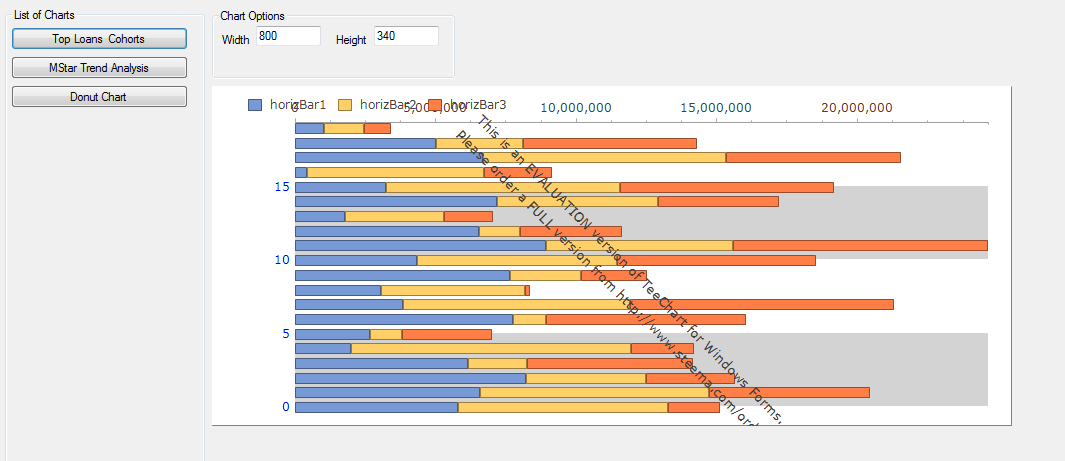

Legend and Chart top is overlapping , Also grid lines are not showing from top axis
- graphTopLoanCohorts.png (20.88 KiB) Viewed 15543 times
Code: Select all
private void SetCommonProperties(ChartBuilderParam param)
{
Chart chart = param.ChartInstance;
TChart tchart = param.TeeChart;
tchart.Aspect.View3D = false;
chart.Header.Visible = false;
tchart.Legend.Alignment = Steema.TeeChart.LegendAlignments.Top;
tchart.Legend.DrawBehind = false;
tchart.Legend.Pen.Visible = false;
tchart.Legend.Shadow.Visible = false;
tchart.Legend.Transparent = true;
tchart.Legend.VertMargin =55;
tchart.Legend.CustomPosition = true;
tchart.Legend.Top = 10;
tchart.Legend.Left = 30;
tchart.Axes.Automatic = true;
}
public ChartBuilderParam BuildTopLoansCohortChart( ChartBuilderParam param)
{
Chart chart = param.ChartInstance;
TChart tchart = param.TeeChart;
SetCommonProperties(param);
// tchart.AfterDraw += tchart_AfterDraw;
tchart.Panel.MarginLeft = 7;
GridBand band = new GridBand(chart);
band.Axis = tchart.Axes.Left;
band.Band1.Color = Color.White;
band.Band2.Color = Color.LightGray;
Axis leftAxis = tchart.Axes.Left;
leftAxis.IncrementOffset = 0;
leftAxis.Increment = 5;
leftAxis.AxisPen.Visible = false;
leftAxis.Labels.Font.Color = Color.Blue;
leftAxis.Ticks.Visible = false;
leftAxis.MinorTicks.Visible = false;
leftAxis.Grid.Visible = false;
leftAxis.MinimumOffset = 0;
Axis topAxis = tchart.Axes.Top;
topAxis.Chart = chart;
topAxis.Grid.Visible = true;
topAxis.Grid.DrawEvery = 2;
topAxis.Grid.Fill.Color = Color.Blue;
Random rnd = new Random();
for (int i = 0; i < 3; i++)
{
Steema.TeeChart.Styles.HorizBar loanBar = new HorizBar(chart);
loanBar.MultiBar = Steema.TeeChart.Styles.MultiBars.Stacked;
loanBar.SideMargins = false;
loanBar.Marks.Visible = false;
loanBar.VertAxis = Steema.TeeChart.Styles.VerticalAxis.Left;
loanBar.HorizAxis = Steema.TeeChart.Styles.HorizontalAxis.Top;
for (int k = 1; k <= 20; k++)
{
loanBar.Add(rnd.Next(100000,10000000));
}
}
return param;
}
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Tue Aug 23, 2016 7:44 am
by Christopher
Hello,
Would you please be so kind as to retouch your example so I can compile and run it here? I'm afraid I do not have access to your ChartBuilderParam object.
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Tue Aug 23, 2016 12:42 pm
by 9642129
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Tue Aug 23, 2016 3:06 pm
by Christopher
Hello,
Thank you for your code. The problem can be corrected by adding one line to SetCommonProperties():
Code: Select all
tchart.Legend.CustomPosition = true;
tchart.Legend.Top = 10;
tchart.Legend.Left = 30;
tchart.Panel.MarginTop = 10;
The reason the MarginTop is necessary is because you have set CustomPosition to true.
Re: Horiztal Bar Top Axis and Custom Y axis
Posted: Tue Aug 23, 2016 6:28 pm
by 9642129
Thank You , this worked
