Posted: **Mon Sep 26, 2016 1:15 pm**

Good Morning,

I have been searching for two days now in code, in the debugger in the object, in the forums, and in the examples. Nothing I have found talks about a bubble in 3D space. When I try to do this with multiple series all the series are flat and fill no depth. I have tried every "depth" type property I can find and nothing makes the bubbles anything other than flat bubbles. Yah, if you look at them straight on they are drawn like bubble (which have a weird overlapping artifact but that will potentially be another thread) but when put in a 3D graph they are flat. Not only are they flat multiple series of the bubbles don't stretch across the entire z dimension. Instead they are all stacked (as flat objects stack) on one another in the middle of the z dimension.

Is what I am doing, balls in 3D space, not implemented?

Posted: **Mon Sep 26, 2016 1:46 pm**

I should have said that I am trying to do this with points. Example code with a new project and a TChart added in design mode:

Code: Select all

Imports Steema.TeeChart

Public Class Form1
    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        OneSeries(Color.Blue)
        OneSeries(Color.Red)
        OneSeries(Color.Green)

        TChart1.Aspect.View3D = True
        TChart1.Aspect.Orthogonal = False
        TChart1.Aspect.Rotation = -87
    End Sub

    Private Sub OneSeries(seriesColor As Color)
        Dim newSeries As Styles.Points3D = New Steema.TeeChart.Styles.Points3D

        TChart1.Series.Add(newSeries)

        For i = 1 To 10
            newSeries.Add(i, i, seriesColor)
        Next

        newSeries.Marks.Visible = False
        newSeries.Pointer.Style = Steema.TeeChart.Styles.PointerStyles.Sphere
        newSeries.LinePen.Visible = False
    End Sub

End Class

Posted: **Mon Sep 26, 2016 2:16 pm**

Okay, I went back to using Points instead of Points3D:
Dim newSeries As Styles.Points = New Steema.TeeChart.Styles.Points
instead of:
Dim newSeries As Styles.Points3D = New Steema.TeeChart.Styles.Points3D

and now the z dimension depth of the series is okay, meaning the series are not all mushed together in the center of the z dimension, but the reason I was using Points3D so the points themselves could have depth. Of course, that is the other problem being that the points3D don't have any z dimension depth.

I guess if I could get the Points to have depth then that is fine as well or if the Points3D had depth themselves and the series of them have depth.

Posted: **Mon Sep 26, 2016 3:25 pm**

Hello,

Are you sure Points3D is not what you want?

Code: Select all

    private void InitializeChart()
    {
      tChart1.Aspect.View3D = true;
      tChart1.Aspect.Orthogonal = false;
      tChart1.Aspect.Chart3DPercent = 60;
      tChart1.Aspect.Zoom = 80;

      Points3D series = new Points3D(tChart1.Chart);
      series.FillSampleValues();

      series.LinePen.Visible = false;
      series.Pointer.Style = PointerStyles.Sphere;
      series.Pointer.HorizSize = 30;
      series.Pointer.VertSize = 30;
    }

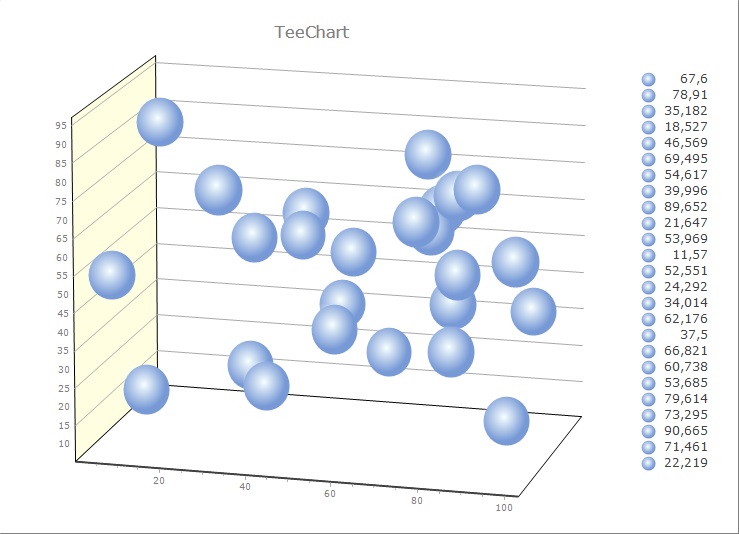

: 636105073632966488.jpg (81.86 KiB) Viewed 19339 times

Posted: **Mon Sep 26, 2016 6:16 pm**

As I said, I am using Points3D and Sphere pointer style. If you look at the code I posted you will see that.

My two problems are:
1) Rotate the graph you created (maybe with the rotate tool) and you will see that the 3DPoints are flat. They have an x and y dimension but no z dimension. Hence flat!
2) Add another series. In my example code I show three series: Blue, Red, and Green. You will see that the 3dPoint multiple series overlap (and are flat so they overlap each other on the same z plane).

Posted: **Mon Sep 26, 2016 6:20 pm**

Here, this is the size of your points with my three series.
I also added a rotate tool.

Code: Select all

Imports Steema.TeeChart

Public Class Form1
    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        OneSeries(Color.Blue)
        OneSeries(Color.Red)
        OneSeries(Color.Green)

        TChart1.Aspect.View3D = True
        TChart1.Aspect.Orthogonal = False
    End Sub

    Private Sub OneSeries(seriesColor As Color)
        TChart1.Aspect.View3D = True
        TChart1.Aspect.Orthogonal = False
        TChart1.Aspect.Chart3DPercent = 60
        TChart1.Aspect.Zoom = 80

        Dim newSeries As Styles.Points3D = New Steema.TeeChart.Styles.Points3D
        TChart1.Series.Add(newSeries)

        For i = 1 To 10
            newSeries.Add(i, i, seriesColor)
        Next

        newSeries.Marks.Visible = False
        newSeries.Pointer.Style = Steema.TeeChart.Styles.PointerStyles.Sphere
        newSeries.Pointer.HorizSize = 30
        newSeries.Pointer.VertSize = 30
        newSeries.LinePen.Visible = False

        TChart1.Tools.Add(New Steema.TeeChart.Tools.Rotate)
    End Sub

End Class

Posted: **Mon Sep 26, 2016 6:27 pm**

Attached is a snpashot of the three series which are red, blue, and green placed on the chart and then rotated with the rotate tool.

Posted: **Mon Sep 26, 2016 6:35 pm**

If I modify the code above and replace Points3D with Points I get the series spread out along the Z plane but the points are still flat.

The Points series was what I started with and noticed that the points had no Z-dimension. I switched over to Points3D and it got worse because the points don't have a Z-Dimension size nor are they distributed along the Z axis.

Posted: **Mon Sep 26, 2016 8:37 pm**

Hello,

biqpaulson wrote:The Points series was what I started with and noticed that the points had no Z-dimension.

I see the issue now, apologies for not catching it the first time round. By default, TeeChart uses the default Windows Forms GDI+ canvas to render, and this canvas is not a 3D canvas. We do have a 3D canvas, however, an OpenGL canvas, a working example of which you can find on your harddisk under:

D:\Program Files (x86)\Steema Software\Steema TeeChart for .NET 2016 4.1.2016.05120\Examples\OpenGLProject\bin\ExecutableDemo\OpenGLDemo.exe

By adding TeeChart.OpenGL.dll to your project, you should be able to achieve something like this:

Code: Select all

    TeeOpenGL openGL;
    private void InitializeChart()
    {
      openGL = new TeeOpenGL(tChart1.Chart);
      openGL.Active = true;
      openGL.AmbientLight = 50;

      tChart1.Aspect.View3D = true;
      tChart1.Aspect.Chart3DPercent = 60;
      tChart1.Aspect.Zoom = 50;

      Points3D series = new Points3D(tChart1.Chart);
      series.FillSampleValues();

      series.LinePen.Visible = false;
      series.Pointer.Style = PointerStyles.Sphere;
      series.Pointer.HorizSize = 30;
      series.Pointer.VertSize = 30;

      tChart1.Tools.Add(typeof(Rotate));
    }

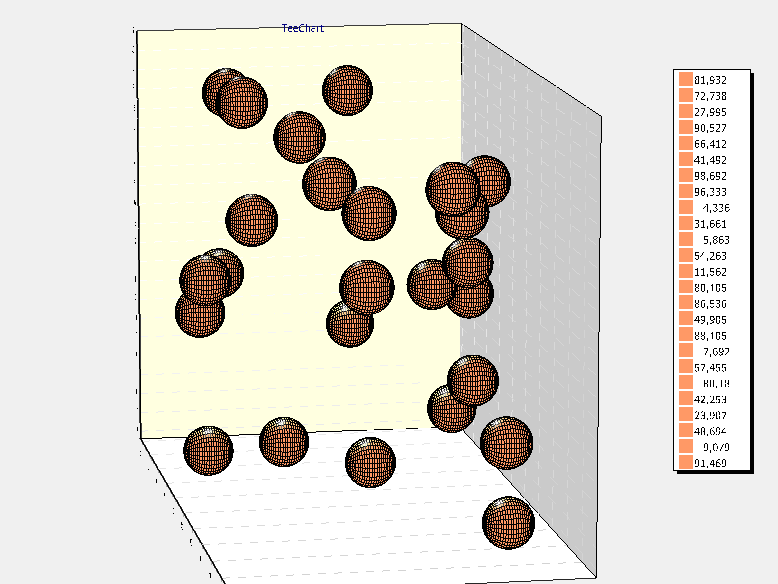

: bubble.PNG (54.69 KiB) Viewed 19301 times

Posted: **Tue Sep 27, 2016 1:00 pm**

After lots of testing with the opengl library I cannot get what you have.
1) All I get is a big red X where the graph belongs if I use either Sphere or PolishedSphere. No exceptions in the Output window or any indication that there was a problem.
2) Nothing is 3D except for the Circle (funny that a circle is actually a sphere using the opengl library with Points3D and Points but the Sphere and PolishedSphere do not work).
3) Using the circle PointerStyle and Points3D Style I still get overlapping series in the Z-Axis. Using circle PointerStyle and Points I get the series spread over the Z-Axis appropriately.
4) Now no coloring of the "circles" work.

Code: Select all

Imports Steema.TeeChart

Public Class Form1
    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        DrawSeries(TChart1)
        DrawSeries(TChart2)
        DrawSeries3D(TChart3)
        DrawSeries3D(TChart4)
    End Sub

    Private Sub FormatChart(chartToFormat As TChart)
        chartToFormat.Aspect.View3D = True
        chartToFormat.Aspect.Orthogonal = False
        chartToFormat.Aspect.Chart3DPercent = 60
        chartToFormat.Aspect.Zoom = 80

        chartToFormat.Tools.Add(New Steema.TeeChart.Tools.Rotate)
    End Sub

    Private Sub DrawSeries(chartToDraw As TChart)
        FormatChart(chartToDraw)

        OneSeries(chartToDraw, Color.Blue)
        OneSeries(chartToDraw, Color.Red)
        OneSeries(chartToDraw, Color.Green)
    End Sub

    Private Sub DrawSeries3D(chartToDraw As TChart)
        FormatChart(chartToDraw)

        OneSeries3D(chartToDraw, Color.Blue)
        OneSeries3D(chartToDraw, Color.Red)
        OneSeries3D(chartToDraw, Color.Green)
    End Sub

    Private Sub OneSeries(chartToAddTo As TChart, seriesColor As Color)
        Dim newSeries As Styles.Points = New Steema.TeeChart.Styles.Points
        chartToAddTo.Series.Add(newSeries)
        newSeries.Color = seriesColor

        For i = 1 To 10
            newSeries.Add(i, i, seriesColor)
        Next

        newSeries.Pointer.HorizSize = 10
        newSeries.Pointer.VertSize = 10
        newSeries.LinePen.Visible = False

        newSeries.Marks.Visible = False
        newSeries.Pointer.Style = Steema.TeeChart.Styles.PointerStyles.Circle

        newSeries.Pointer.HorizSize = 10
        newSeries.Pointer.VertSize = 10
        newSeries.LinePen.Visible = False
    End Sub

    Private Sub OneSeries3D(chartToAddTo As TChart, seriesColor As Color)
        Dim newSeries As Styles.Points3D = New Steema.TeeChart.Styles.Points3D
        chartToAddTo.Series.Add(newSeries)
        newSeries.Color = seriesColor

        For i = 1 To 10
            newSeries.Add(i, i, seriesColor)
        Next

        newSeries.Pointer.HorizSize = 10
        newSeries.Pointer.VertSize = 10
        newSeries.LinePen.Visible = False

        newSeries.Marks.Visible = False
        newSeries.Pointer.Style = Steema.TeeChart.Styles.PointerStyles.Circle

        newSeries.Pointer.HorizSize = 10
        newSeries.Pointer.VertSize = 10
        newSeries.LinePen.Visible = False
    End Sub

End Class

Posted: **Tue Sep 27, 2016 1:18 pm**

Oh, I should add another item. The drawing using the OpenGL library is the worse I have seen. Not only do the balls (albeit from circle styles) look not very good but the lines on the graph are just plain horrid.

Posted: **Tue Sep 27, 2016 1:52 pm**

biqpaulson wrote:Oh, I should add another item. The drawing using the OpenGL library is the worse I have seen. Not only do the balls (albeit from circle styles) look not very good but the lines on the graph are just plain horrid.

I agree that the quality of TeeChart's OpenGL output could be substantially improved. I will say that part of the reason little time has been dedicated to this part of the TeeChart.NET project is because we have had very little demand for OpenGL in the last five years or so, I can't remember any of our clients asking for improvements in this area. Anyhow, I have added this as a ticket to our issue tracker with id=1642 and will also comment on this to the product manager.
