Posted: **Tue Nov 14, 2017 2:23 pm**

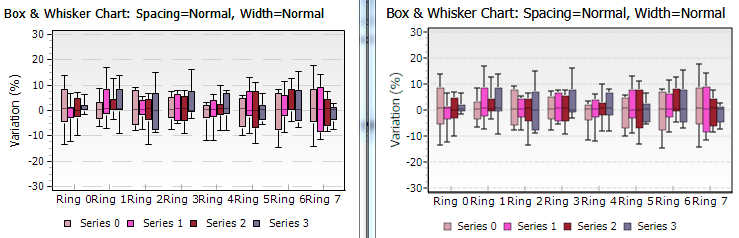

We have tried to switch over from the winforms teechart to the WPF teecchart but we are having issues with anti-aliasing in all the WPF stuff. I've attached an example screen grab with the winforms on the left and WPF on the right. Both were produced with almost identical code (barring different color and dashline types). The chart is basically a bunch of tchart Box types. We have similar issues on our more regular chart types, especially in the fonts, but this is the most obvious example. Can you advise on how we could go about fixing this please? (I've run out of ideas after trying for a few days).

thanks,
K

: Capture.PNG (28.04 KiB) Viewed 8476 times

Posted: **Wed Nov 15, 2017 12:56 pm**

Hello K,

Have you tried the UseGuideLines property? e.g.

Code: Select all

		private void Button_Click(object sender, RoutedEventArgs e)
		{
			tChart1.Aspect.UseGuidelines = !tChart1.Aspect.UseGuidelines;
		}

Posted: **Wed Nov 15, 2017 1:31 pm**

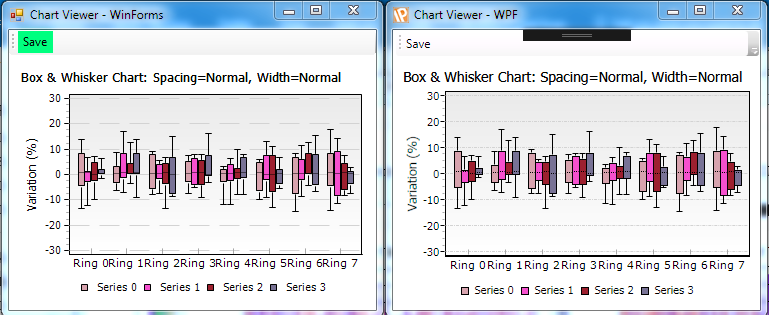

That works brilliantly, thanks!

: Capture.PNG (89.32 KiB) Viewed 8468 times
