Code: Select all

Chart.Legend.Symbol.Squared = true;
Chart.Legend.Symbol.Height = 10;
Chart.Legend.Symbol.Width = 10;

Code: Select all

{

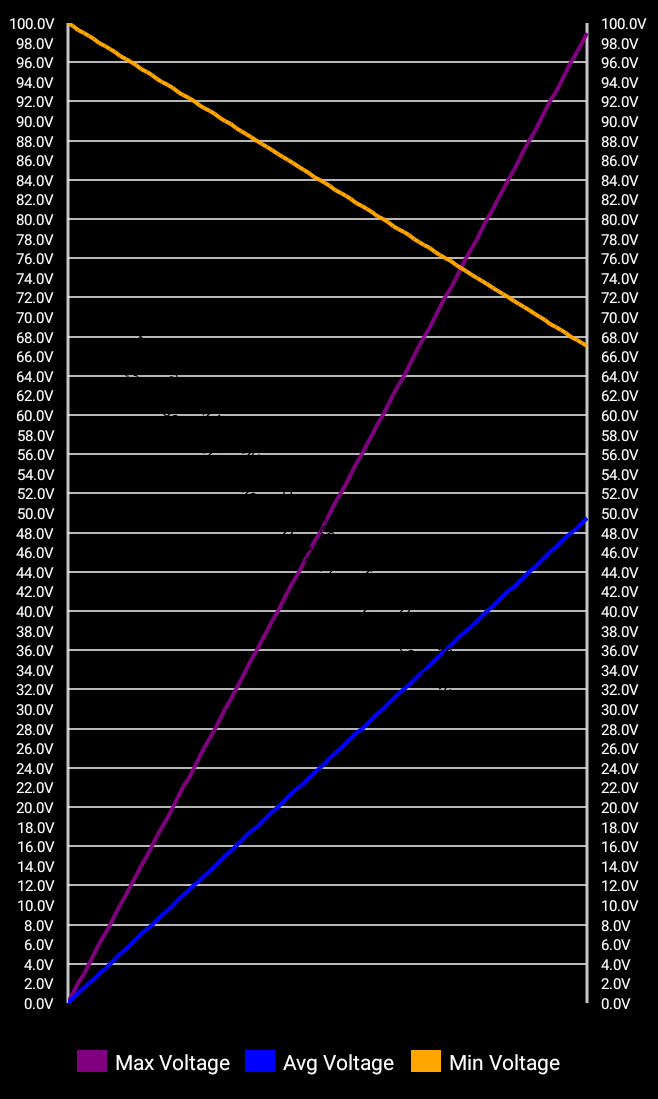

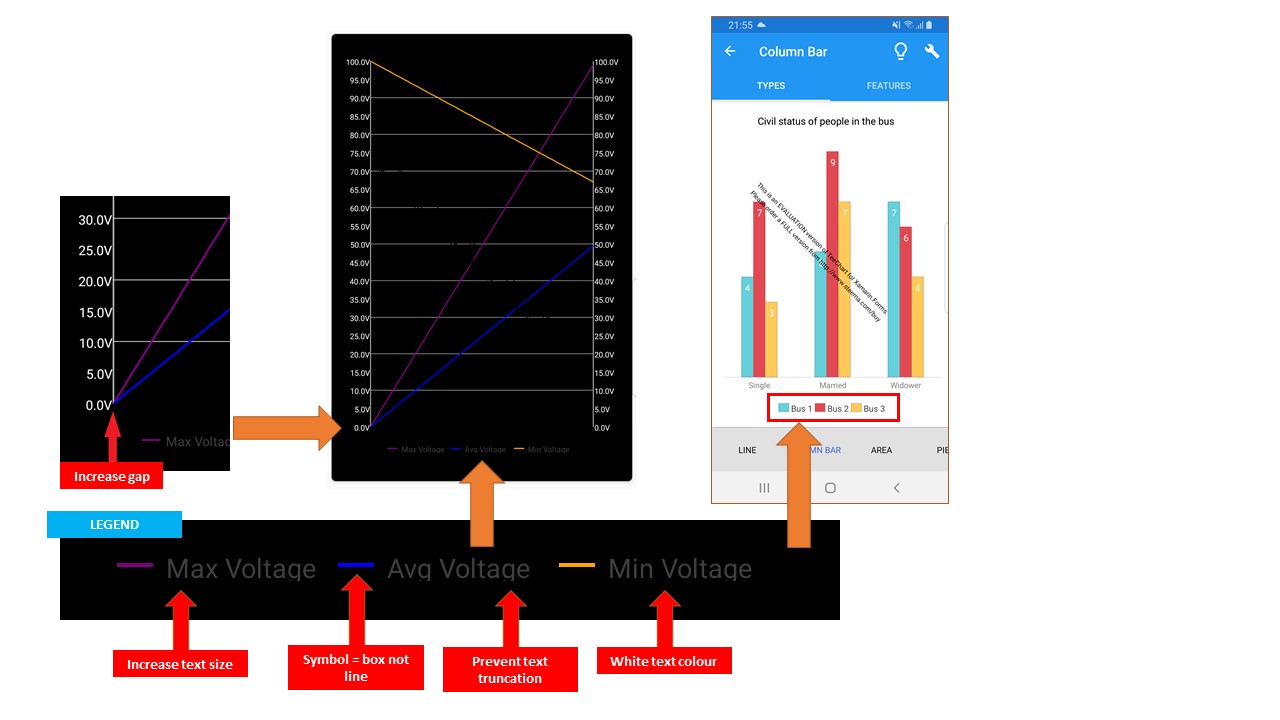

	    // Add inside main method

            // 1 - Chart legend font color to white
            Chart.chart.Legend.Font.Color = Color.White;

            // 2 - Legend squared symbol using drawsymbol method
            Chart.chart.Legend.Symbol.OnSymbolDraw += Symbol_OnSymbolDraw;

            // 3 - Increase legend text box size
	   Chart.chart.Legend.Font.Size = 15;

	    // 4 - prevent legend text truncating - Yes a minor bug, as text must be vertical center aligned, workaround using
            // the getLegendRect
	    Chart.chart.GetLegendRect += Chart_GetLegendRect;

            // 5 - increase gap between axis labels
            Chart.chart.Axes.Left.Ticks.Visible = true;
            Chart.chart.Axes.Left.Ticks.Transparency = 100;
            Chart.chart.Axes.Left.Ticks.Length = 20;
        }

	 private void Chart_GetLegendRect(object sender, GetLegendRectEventArgs e)
        {
          Rectangle chartRect = e.Rectangle;
          e.Rectangle = new Rectangle(e.Rectangle.Left, e.Rectangle.Top, e.Rectangle.Width, e.Rectangle.Height+20);
        }


    	private void Symbol_OnSymbolDraw(object sender, SymbolDrawEventArgs e)
	{
          Rectangle tmpR = e.Rect;
          tmpR.Inflate(-2, -2);

          Chart.chart.Graphics3D.Rectangle(tmpR);
        }
