Posted: **Wed Mar 03, 2021 9:41 am**

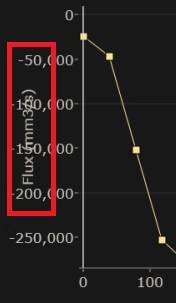

The Y- axis label title and values are overlapping. While loading initial time the position of label title and label values are correct. When I change the Y-axis unit or selecting another component , the position of label title is same, not getting relocated. Due to this issue my label title and values are getting superimposed. PFA for the issue details.

: TeeChartIssue.jpg (9.05 KiB) Viewed 7275 times

I am using Steema.TeeChart.WPF.TChart, TeeChart.WPF
Release Notes 12th May 2016
Build 4.1.2016.05120

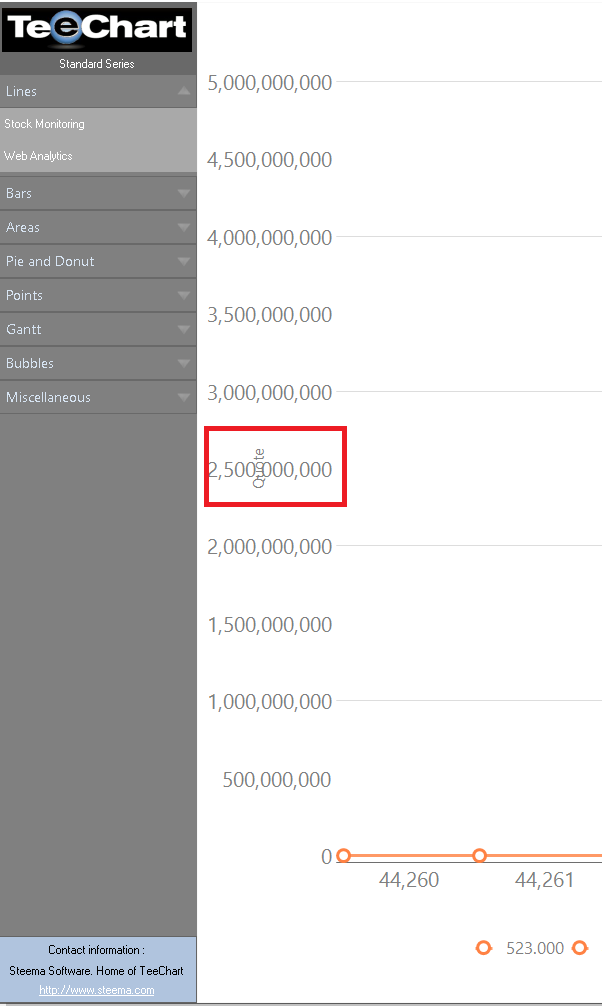

I found the same issue in TeeChart example as well, while increasing the Left Axis maximum value to a large number

: TeechartDemo.png (26.68 KiB) Viewed 7264 times

.

Posted: **Thu Mar 04, 2021 9:34 am**

Hello!

The solution to this one is to set the FixedLabelSize property to false, e.g.

Code: Select all

    private void InitializeChart(TChart chart)
    {
      var line = new Steema.TeeChart.WPF.Styles.Line(chart.Chart);
      line.FillSampleValues();
      chart.Axes.Left.Title.Text = "Left Axis Title";
    }

    private void button1_Click(object sender, RoutedEventArgs e)
    {
      tChart1.Axes.Left.FixedLabelSize = false;
      tChart1.Axes.Left.SetMinMax(0, 100000);
    }

The FixedLabelSize property is default true as a performance optimization to stop the size of the axis labels being recalculated on every repaint.

Posted: **Thu Mar 04, 2021 10:32 am**

Thank you very much Christopher for your support. It is working perfectly now.
