IsoSurface Issue with .net6

[sihmon]

Visual Studio 2022, dotnet core6
Steema.TeeChart.NET(4.2022.7.14)

I'm making a chart with dotnet core 6.0.
In the old version of tchart,
I Drew IsoSurface well in rainbow style.
But now it's not painted in a rainbow style.
Is there anything I need to check?


==========================

this.isoSurface1 = new Steema.TeeChart.Styles.IsoSurface();
this.tChart1.Series.Add(this.isoSurface1);
this.isoSurface1.PaletteStyle = Steema.TeeChart.Styles.PaletteStyles.Rainbow;
this.isoSurface1.PaletteSteps = 20;
this.isoSurface1.WireFrame = false;
this.isoSurface1.DotFrame = false;
this.isoSurface1.PaletteSteps++;
this.isoSurface1.UseColorRange = false;
this.isoSurface1.UsePalette = true;
this.isoSurface1.PaletteSteps--;

[Christopher]

Hello,

But now it's not painted in a rainbow style.
Is there anything I need to check?

This seems to work okay with the latest NuGet and the following code:

Code: Select all

    public Form1()
    {
      InitializeComponent();
      InitializeChart();
    }

    private void InitializeChart()
    {
      var iso = new IsoSurface(tChart1.Chart);
      iso.FillSampleValues();
      tChart1.Aspect.View3D = true;
      tChart1.Aspect.Chart3DPercent = 100;
      tChart1.Aspect.Zoom = 60;
      tChart1.Aspect.Orthogonal = false;
      tChart1.Aspect.Rotation = 300;
      tChart1.Aspect.Elevation = 300;
      tChart1.Aspect.Perspective = 100;
      iso.PaletteStyle = Steema.TeeChart.Styles.PaletteStyles.Rainbow;


      tChart1.Tools.Add(typeof(Rotate));

      tChart1.Header.Text += $" version {Utils.Version}";
    }

In .NET Framework 4.0 Windows Forms I get this:

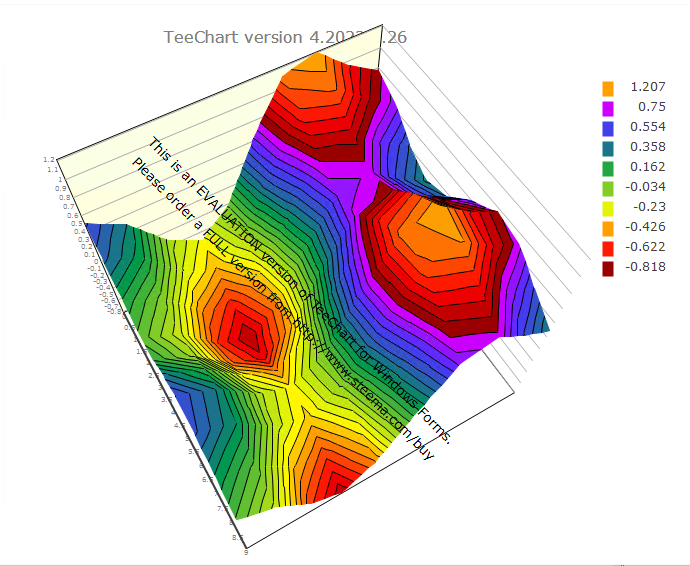

Screenshot from 2022-10-04 12-31-31.png (279.76 KiB) Viewed 10293 times

and in .net6.0 Windows Forms I get this:

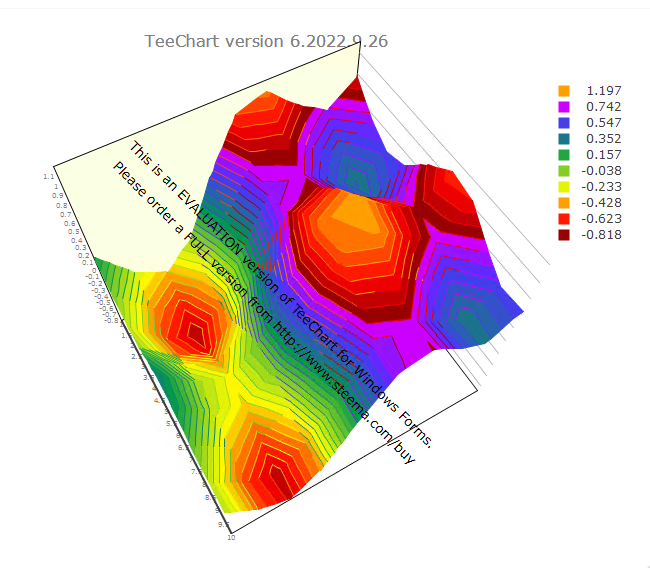

Screenshot from 2022-10-04 12-30-01.png (236.63 KiB) Viewed 10293 times

[sihmon]

The IsoSurface.WireFrame shape has changed.
Previously, I used wireframe set to true.
However, now I Have to set it to false and use it.
before, there was only one color space per wire.
Now several colors are mixed in one wire.
Can I draw with one color on one wire?

Code: Select all

isoSurface1.Brush.Visible= false;
isoSurface1.WireFrame = false;
isoSurface1.DotFrame = false;

[Christopher]

The IsoSurface.WireFrame shape has changed.
Previously, I used wireframe set to true.

We have been able to reproduce this error with WireFrame and have added it to our issue tracker with id=2560. Apologies for the inconvenience caused by this issue; we will look into it as soon as possible.

[Christopher]

Apologies for the inconvenience caused by this issue; we will look into it as soon as possible.

This issue has now been fixed, and the fix to it is available in the latest NuGet packages.

[sihmon]

Our conversation went wrong.

4.0.2009.62332
In version 4.0.2009.62332,
a rainbow color is completed with one color for each wire.


4.2022.9.26 dotnet6 core
In version 4.2022.9.26,
a rainbow color is completed with multiple colors for each wire.




4.2022.10.11 dotnet6 core
In the latest updated version 4.2022.10.11, all wires are the same color. Black



Like version 4.0.2009.62332, I want the rainbow to be drawn with a color for each wire

Code: Select all


   isoSurface1.Brush.Transparency = 0;
            isoSurface1.BandPen.Visible = true;
            isoSurface1.FillSampleValues();
            isoSurface1.PaletteSteps = 25;
            isoSurface1.PaletteStyle = Steema.TeeChart.Styles.PaletteStyles.Rainbow;

            tChart1.Aspect.View3D = true;
            tChart1.Zoom.Direction = Steema.TeeChart.ZoomDirections.None;
            rotate1 = new Rotate();
            rotate1.Rotating += Rotate1_Rotating;
            this.tChart1.Tools.Add(this.rotate1);


                isoSurface1.WireFrame = false;
                isoSurface1.DotFrame = false;
                isoSurface1.Brush.Visible = false;


[Christopher]

Hello,

Like version 4.0.2009.62332, I want the rainbow to be drawn with a color for each wire

Okay, I've run your code, specifically, I've run this code against version 4.0.2009.62332:

Code: Select all

    public Form1()
    {
      InitializeComponent();
      InitializeChart();
    }

    private void InitializeChart()
    {
      var iso = new IsoSurface(tChart1.Chart);
      iso.FillSampleValues();

      tChart1.Aspect.View3D = true;
      tChart1.Aspect.Chart3DPercent = 100;
      tChart1.Aspect.Zoom = 60;
      tChart1.Aspect.Orthogonal = false;
      tChart1.Aspect.Rotation = 300;
      tChart1.Aspect.Elevation = 300;
      tChart1.Aspect.Perspective = 100;


      iso.Brush.Transparency = 0;
      iso.BandPen.Visible = true;
      iso.FillSampleValues();
      iso.PaletteSteps = 25;
      iso.PaletteStyle = Steema.TeeChart.Styles.PaletteStyles.Rainbow;
      iso.WireFrame = false;
      iso.DotFrame = false;
      iso.Brush.Visible = false;



      tChart1.Tools.Add(typeof(Rotate));

      //tChart1.Header.Text += $" version {Utils.Version}";

      var assembly = Assembly.GetAssembly(typeof(TChart));
      var fvi = System.Diagnostics.FileVersionInfo.GetVersionInfo(assembly.Location);

      tChart1.Header.Text += $" version {fvi.FileVersion}";
    }

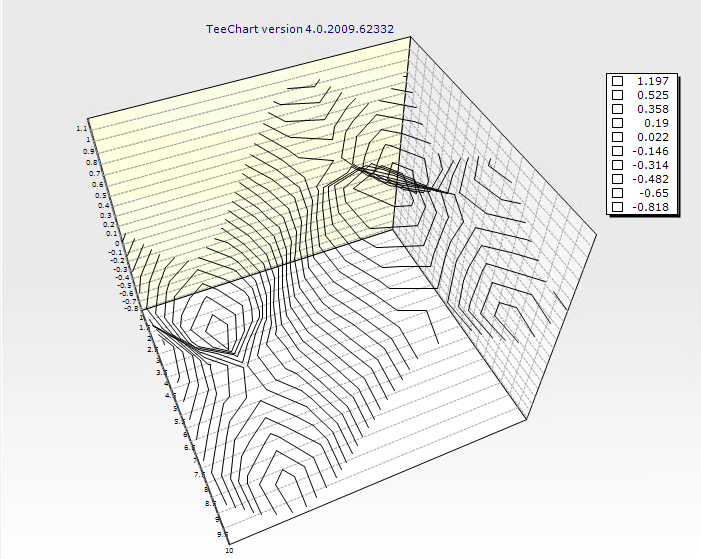

That code gives me:

Screenshot from 2022-10-19 11-02-44.png (243.57 KiB) Viewed 10077 times

The lines here are black—could you please modify this code so that I can reproduce what you want in version 4.0.2009.62332? Once I can reproduce it in this old version I can then have a look to see what the problem is in the present one.

[sihmon]

please, Try running this code in version 4.0.2009.62332
You can see the difference.

Code: Select all

public Form1()
    {
      InitializeComponent();
      InitializeChart();
    }

    private void InitializeChart()
    {
      var iso = new IsoSurface(tChart1.Chart);
      iso.FillSampleValues();

      tChart1.Aspect.View3D = true;
      tChart1.Aspect.Chart3DPercent = 100;
      tChart1.Aspect.Zoom = 60;
      tChart1.Aspect.Orthogonal = false;
      tChart1.Aspect.Rotation = 300;
      tChart1.Aspect.Elevation = 300;
      tChart1.Aspect.Perspective = 100;


      iso.Brush.Transparency = 0;
      iso.BandPen.Visible = true;
      iso.PaletteSteps = 25;
      iso.PaletteStyle = Steema.TeeChart.Styles.PaletteStyles.Rainbow;
      iso.DotFrame = false;
      iso.Brush.Visible = false;
      iso.WireFrame = true;


      tChart1.Tools.Add(typeof(Rotate));

      //tChart1.Header.Text += $" version {Utils.Version}";

      var assembly = Assembly.GetAssembly(typeof(TChart));
      var fvi = System.Diagnostics.FileVersionInfo.GetVersionInfo(assembly.Location);

      tChart1.Header.Text += $" version {fvi.FileVersion}";
    }

[Christopher]

Hello,

please, Try running this code in version 4.0.2009.62332

Thank you, yes, now I can see the difference, and I have added this issue to our issue tracker with id=2562. We will look into it as soon as we can.

[Christopher]

Hello,

just to let you know that this is now fixed in the latest NuGet package.

[sihmon]

Wow, thank you so much.
It's perfect.
