Add function use?

[coldwind]

hello:
i can see these code in InitializeComponent function which is generate automaticlly.

Code: Select all

this.bar1.XValues.DataMember = "X";
this.bar1.YValues.DataMember = "Bar";

i want to use code :

Code: Select all

Add(new {X=1,Bar=10.22});
Add(new {X=2,Bar=15.65});

to show chart .but it's nothing.
class Student {
string name;
int age;
//int weight;
}
so when i want to show my Student class data to chart , which set x axis is "name", set y axis is "age", how i need to do?
I want to code with these style:
this.bar1.XValues.DataMember="name";
this.bar1.XValues.DataMember="age";
....
this.tChart1[0].Add(new Student ('TOM',10));
this.tChart1[0].Add(new Student ('Lily',10));
this.tChart1[0].Add(new Student ('Jack',16));
...

[Christopher]

Hello,

yes, you can use the IList overload of the Add function to do this, e.g.

Code: Select all

    private void InitializeChart()
    {
      var bar = new Bar(tChart1.Chart);

      var list = new List<Student>
      {
        new Student { Age = 10, Name = "Tom" },
        new Student { Age = 10, Name = "Lily" },
        new Student { Age = 16, Name = "Jack" }
      };


      bar.YValues.DataMember = "Age";
      bar.LabelMember = "Name";

      bar.Add(list as IList);
    }

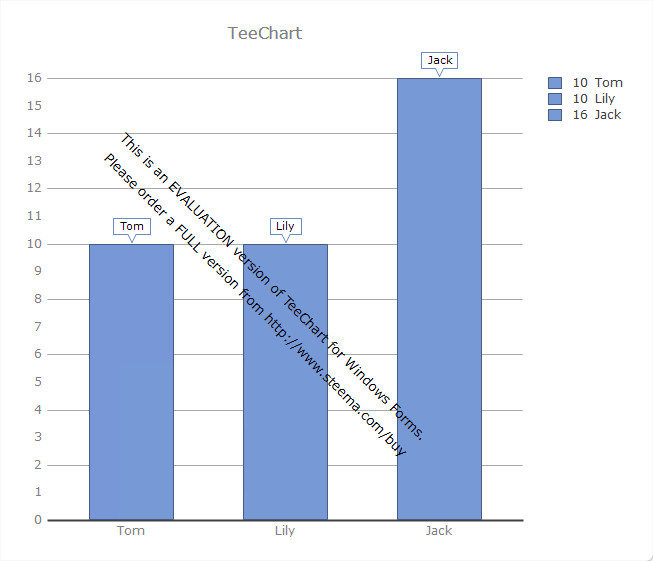

Which gives me:

Screenshot from 2023-01-17 12-18-24.png (25.68 KiB) Viewed 6272 times

[coldwind]

Think you.
But i hope the Mark can custom.
e.g. set the format is

Code: Select all

$"{Name} is {Age}"

so the chart show like :


And I hope the mouse hover the Specified bar ，then the Mark will show like above.When the mouse leave the Specified bar ,the Mark will hide.

[Christopher]

Hello,

yes, you can achieve this with code such as the following:

Code: Select all

    private void InitializeChart()
    {

      var bar = new Bar(tChart1.Chart);
      var markstip = new MarksTip(tChart1.Chart);

      var list = new List<Student>
      {
        new Student { Age = 10, Name = "Tom" },
        new Student { Age = 10, Name = "Lily" },
        new Student { Age = 16, Name = "Jack" }
      };

      void Bar_GetSeriesMark(Series Series, GetSeriesMarkEventArgs e)
      {
        e.MarkText = $"{list[e.ValueIndex].Name} is {list[e.ValueIndex].Age}";
      }


      bar.YValues.DataMember = "Age";
      bar.LabelMember = "Name";

      bar.Add(list as IList);

      bar.GetSeriesMark += Bar_GetSeriesMark;
    }
