Visual Studio 2022
Target framework .NET 6.0
Steema.TeeChart.net Version 4.2024.7.22

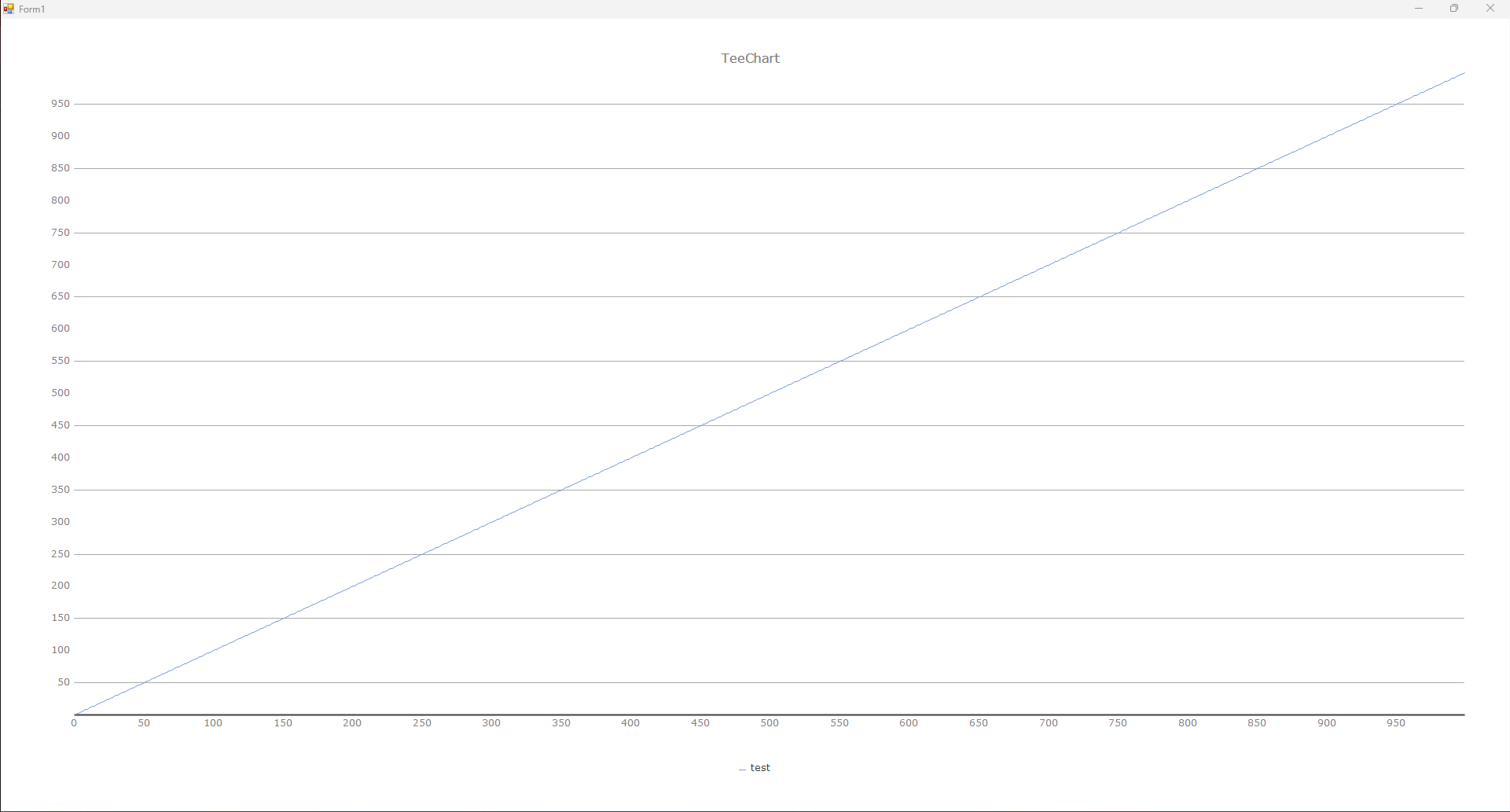

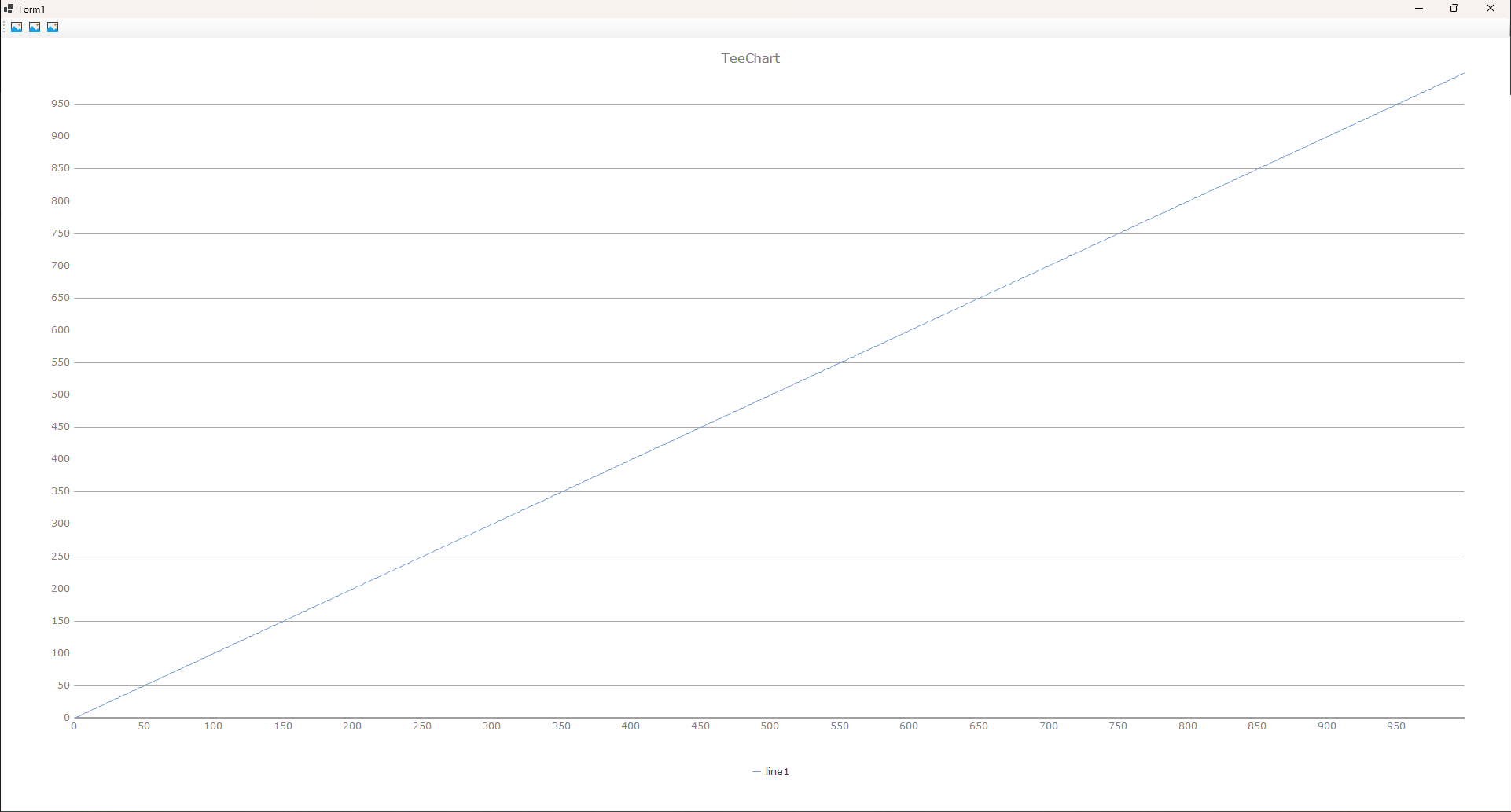

After loading a template file the series title does not get saved off correctly. This seems to work in ,netFramework but not in .net 6.0. In the two screenshots below the one in .net framework puts the Title to "test" whereas the on in .net 6.0 puts title to "line1"
public partial class Form1 : Form
{
Steema.TeeChart.TChart tChart1;
public Form1()
{
InitializeComponent();
tChart1 = new Steema.TeeChart.TChart();
this.Controls.Add(tChart1);
tChart1.Dock = DockStyle.Fill;
tChart1.Axes.Bottom.Visible = true;
tChart1.Axes.Left.Visible = true;
tChart1.Axes.Right.Visible = false;
tChart1.Legend.Visible = true;
tChart1.Legend.LegendStyle = LegendStyles.Series;
LoadData();
TemplateExport template = tChart1.Export.Template;
template.IncludeData = true;
tChart1.Export.Template.Save("template.json");
tChart1.Import.Template.Load("template.json");
}
private void LoadData()
{
tChart1.Legend.Alignment = Steema.TeeChart.LegendAlignments.Bottom;
Series line = new Line();
line.Title = "test";
line.Marks.FollowSeriesColor = true;
tChart1.Chart.Series.Add(line);
for (int i = 0; i < 1000; i++)
{
line.Add(i, i);
}
}
}
Importing data not setting the series title correctly (.net 6)
Importing data not setting the series title correctly (.net 6)
- Attachments
-
- DotNet_6.png (32.13 KiB) Viewed 17332 times
-
- DotNetFramework4_8.png (30.32 KiB) Viewed 17332 times
Re: Importing data not setting the series title correctly (.net 6)
Hi,
thanks for feedback. We're working on fix it.
Regards, Rubén.
thanks for feedback. We're working on fix it.
Regards, Rubén.
Re: Importing data not setting the series title correctly (.net 6)
Hello,
the problem has been resolved and the fix will be included with the next Nuget release.
Regards, Rubén.
the problem has been resolved and the fix will be included with the next Nuget release.
Regards, Rubén.
