Chart offset when plotting stacked bar charts

[Errol]

I use vertical stacked bar charts to plot well lithology, with a custom horizontal axis. This causes the whole chart to be offset to the right. Compare the position of the left vertical axis between a normal line chart and the bar chart. Can you suggest how I might address this.

Thanks

Errol

[Yeray]

Hello,

This seems to work fine for me here:

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
var i: Integer;
begin
  Chart1.Axes.Left.Title.Caption:='Left Axis Title';

  for i:=0 to 4 do
    with Chart1.AddSeries(TBarSeries) as TBarSeries do
    begin
      FillSampleValues;
      MultiBar:=mbStacked;
      Marks.Visible:=false;
    end;
end;


Are you using the latest TeeChart version, v2015.15?
Could you please modify the code above or to arrange a simple example project we can run as-is to reproduce the problem here?

[Errol]

Hi Yeray

Thanks for your reply to my last post and sorry for the delayed reply. I have since determined that the graph offset is caused by assigning a title to the left axis, using the following command:
YLabelDisplay := ldField;

ldField is the current display name of the axis. I use the same command to assign a title to the left axis of an ordinary line graph and this does not cause the graph to be offset, so I would be grateful if you could suggest a workaround for this problem.

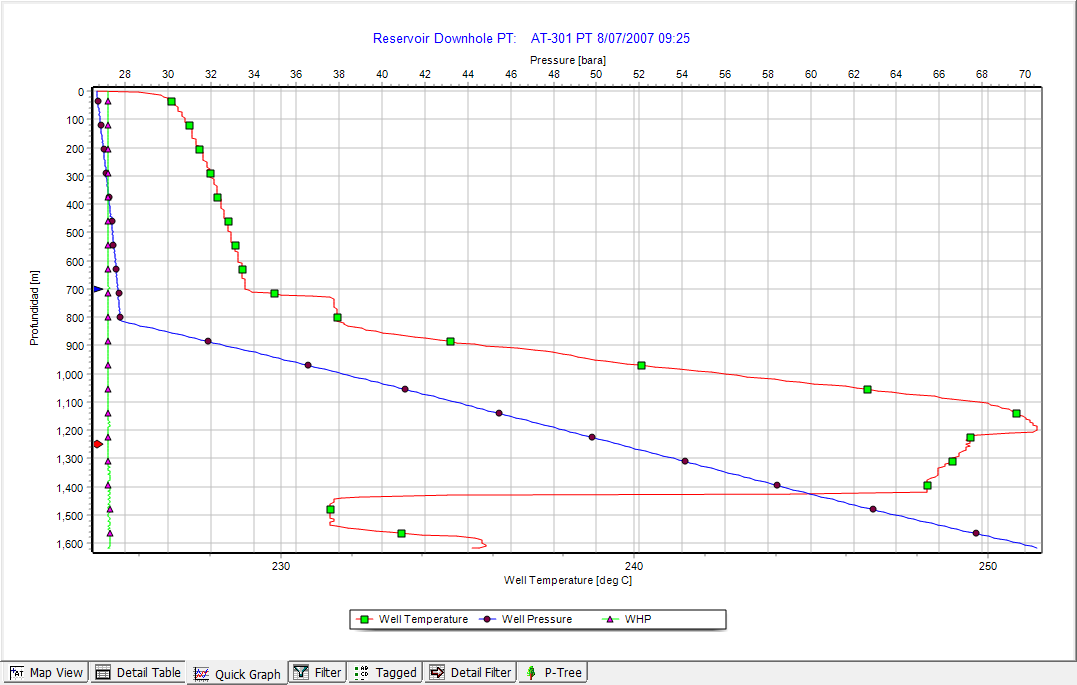

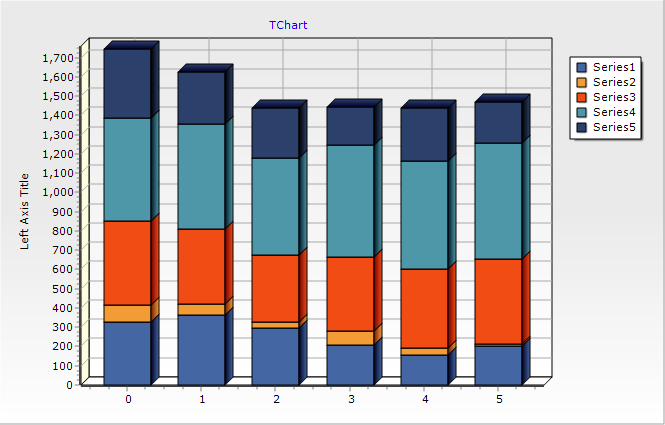

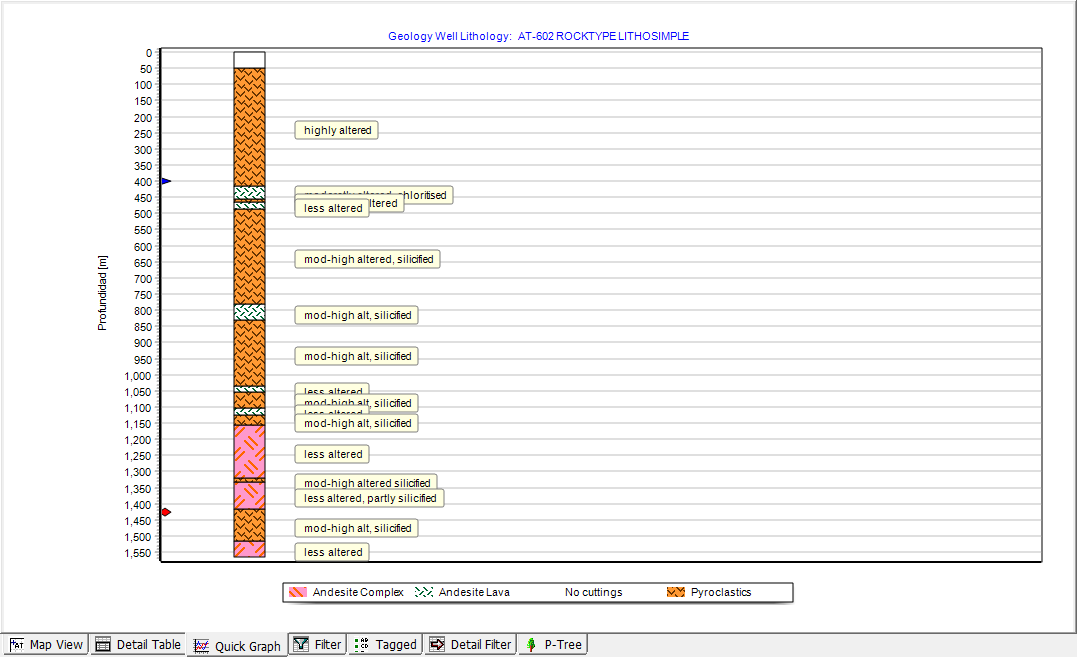

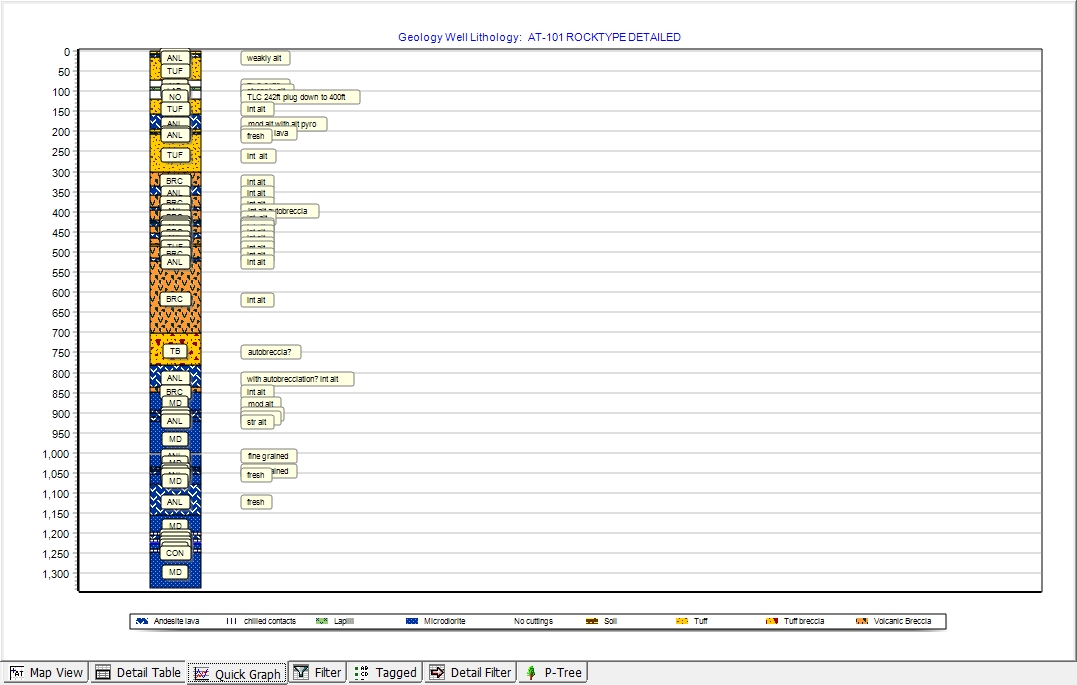

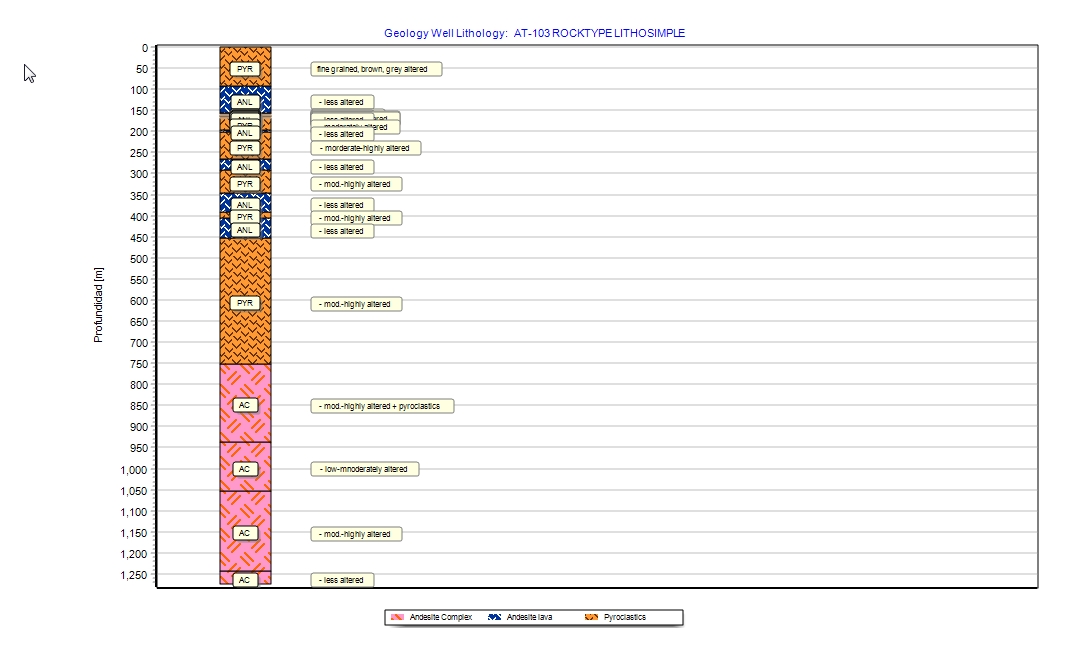

I have attached two graphs showing the offset when a title axis is assigned.

Thanks and regards

Errol



[Yeray]

Hi Errol,

Could you please arrange a simple example project we can run as-is to reproduce the problem here?
Thanks in advance.
