Bug in ScrollPager tool when switching series

[Technicon]

Hi,

I have TeeChart version TeeChartPro 2016.18.
Steps to reproduce:
1) Add 3 line series to the chart.
2) Add ScrollPager on that chart
3) Try to switch ScrollPager series from 1st to 3th serie
In the underlying sub-chart the previous selected serie are not removed. So when one switch from serie1 to serie2 the are always 2 series in sub-chart.

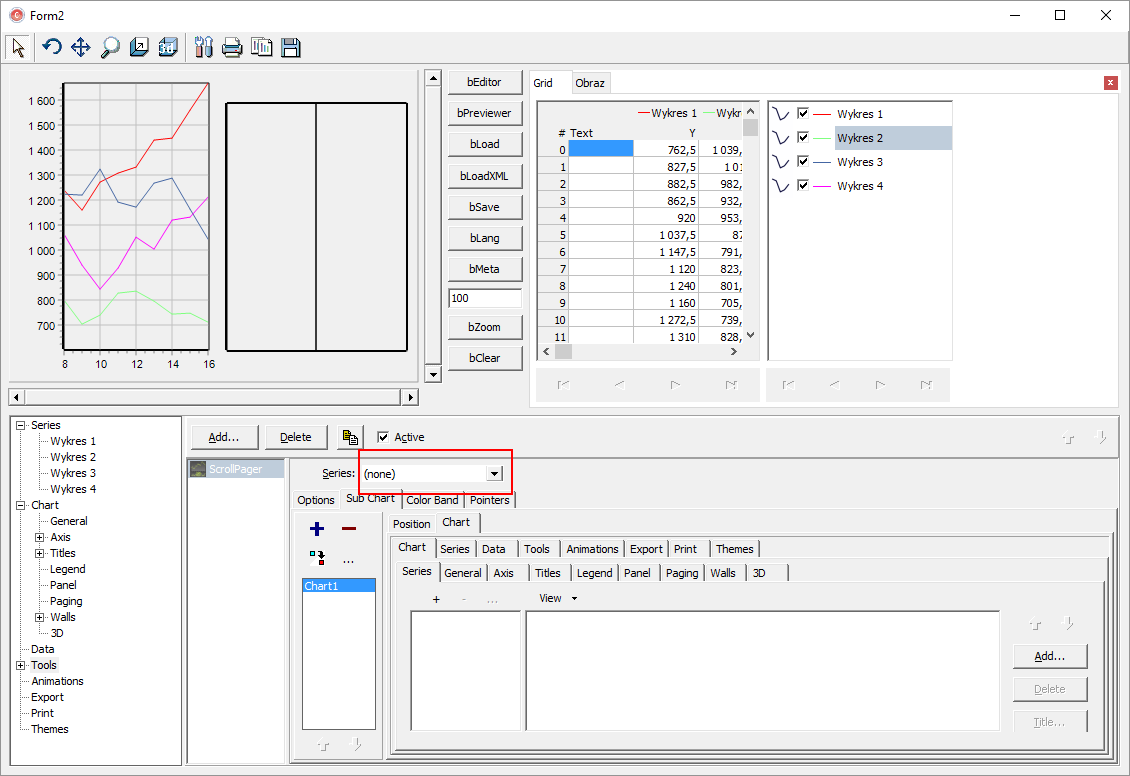

Series (none) is selected

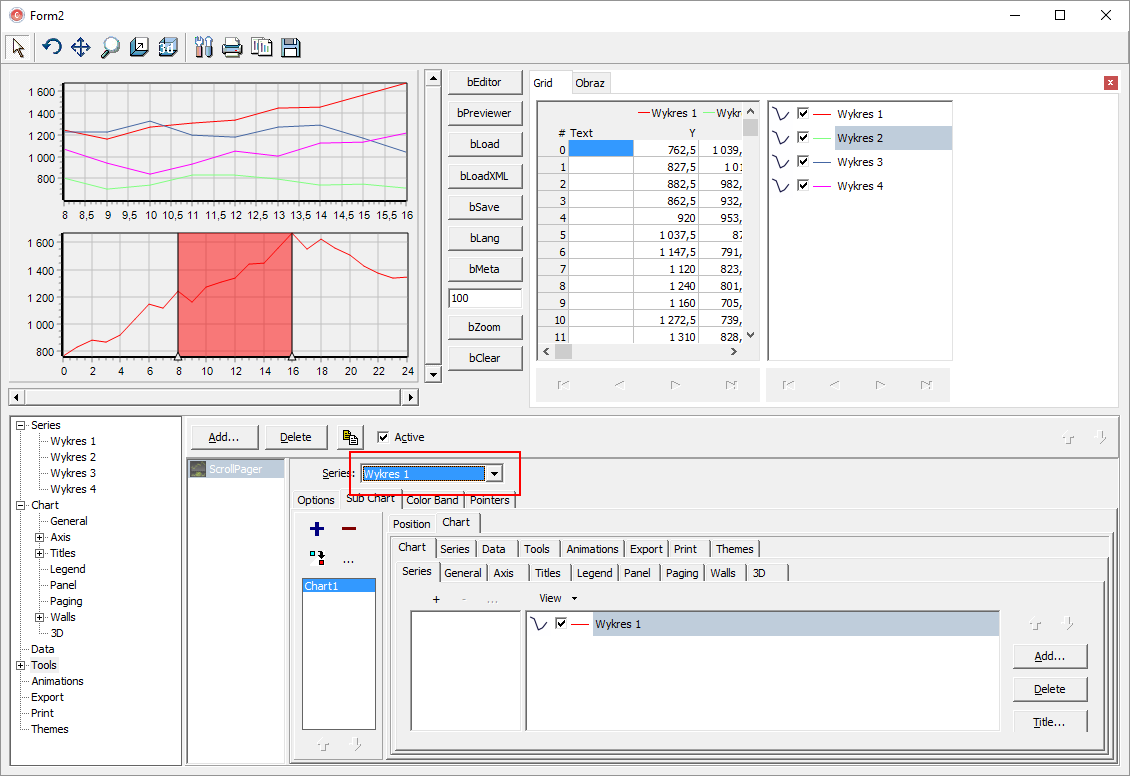

Switch to "Wykres 1"

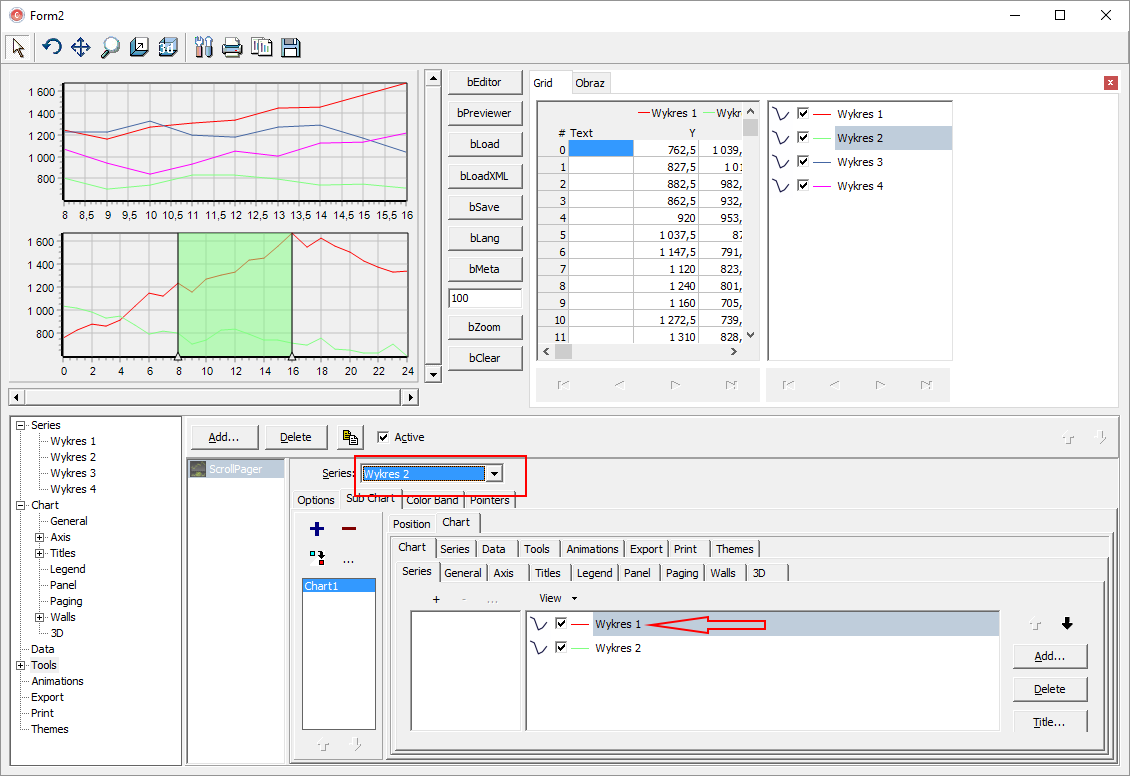

Switch to "Wykres 2"


"Wykres 1" are not deleted from sub-chart.

Best Regards,
Grzegorz

[Yeray]

Hello Grzegorz,

I could reproduce the problem and I also fixed it for the next maintenance release:
http://bugs.teechart.net/show_bug.cgi?id=1623

Thanks for reporting it.

If you have the TeeChart sources the change is simple:
At TeeScrollPagerTool.pas, in the TScrollPagerTool.SetSeries method change this:

Code: Select all

    while t<SubChartTChart.SeriesCount-1 do

for this:

Code: Select all

    while t<SubChartTChart.SeriesCount do

I also fixed another problem to make the color of the series in the ScrollPagerTool to match the color of the series they come from. The fix for this is also at TeeScrollPagerTool.pas, at the end of the CopySeries method change this:

Code: Select all

    s.ParentChart:=SubChartTChart;
  end;

for this:

Code: Select all

    s.ParentChart:=SubChartTChart;
    s.Color:=Value.Color;
  end;

[Technicon]

Hi,

I try version 2016.19 but this bug still exists despite that in bug tracker stays that it's fixed.

Regards,
Grzegorz

[Yeray]

Hi Grzegorz,

There was a problem in the v2016.19 SourceCode installer we published. Please try downloading it again.
