3D grid

[amol]

Hi steema support,
We are waiting for reply. Please provide me any solution ASAP.

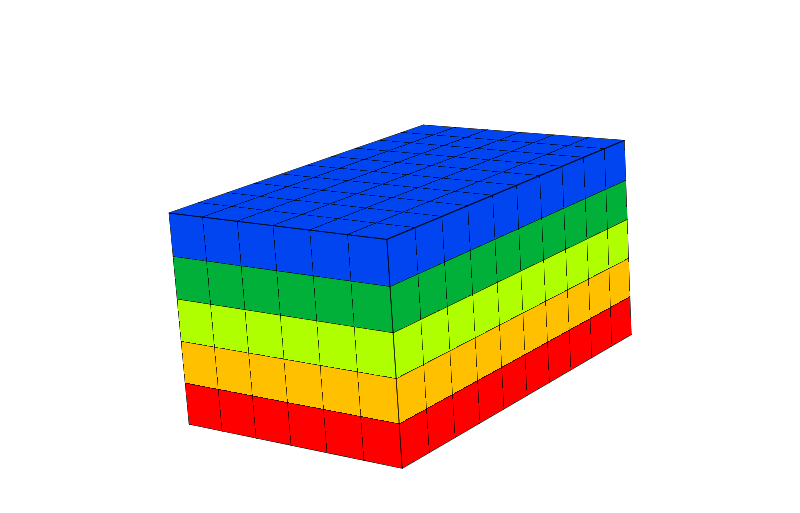

We want to draw curve like below image


It contains five layers as shown in different color.
Thanks
Planoresearch

[Christopher]

Hello,

Many apologies for the delay in replying to your question. You could use the Tower Series, e.g.

Code: Select all

    private void InitializeChart()
    {
      for (int i = 0; i < 5; i++)
      {
        Tower s = (Tower)tChart1.Series.Add(typeof(Tower));
        s.UseColorRange = false;
        s.UsePalette = false;
        s.UseOrigin = true;
        s.Origin = i;
        s.Stacked = true;
      }

      tChart1[0].Color = Color.Red;
      tChart1[1].Color = Color.Orange;
      tChart1[2].Color = Color.LightGreen;
      tChart1[3].Color = Color.Green;
      tChart1[4].Color = Color.Blue;

      for (int x = 0; x < 10; x++)
      {
        for (int z = 0; z < 10; z++)
        {
          for (int i = 0; i < tChart1.Series.Count; i++)
          {
            ((Tower)tChart1[i]).Add(x, 1, z);
          }
        }
      }

      tChart1.Tools.Add(typeof(Rotate));
    }

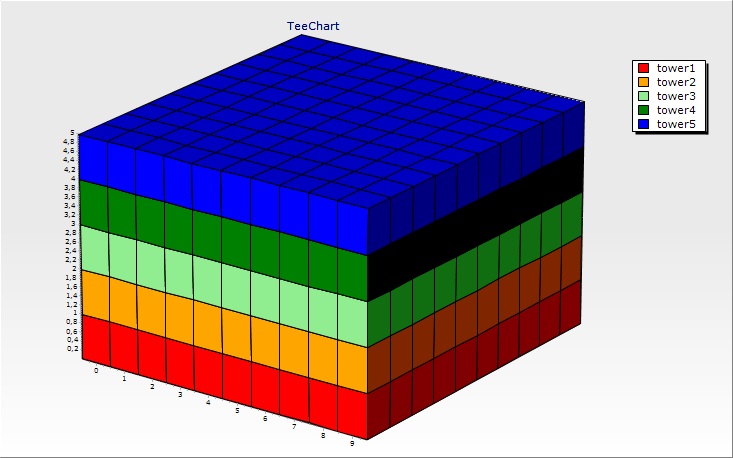

which can give you:
