Axis value repeat

[Elite]

The line is composed of continuous points. When I zoom the chart, duplicate numbers appear on the axis. How should I avoid this situation.

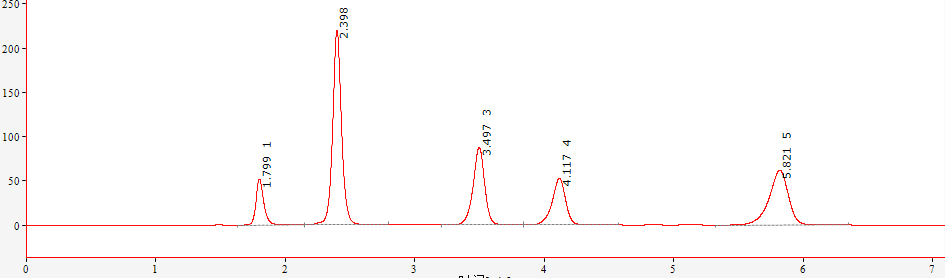

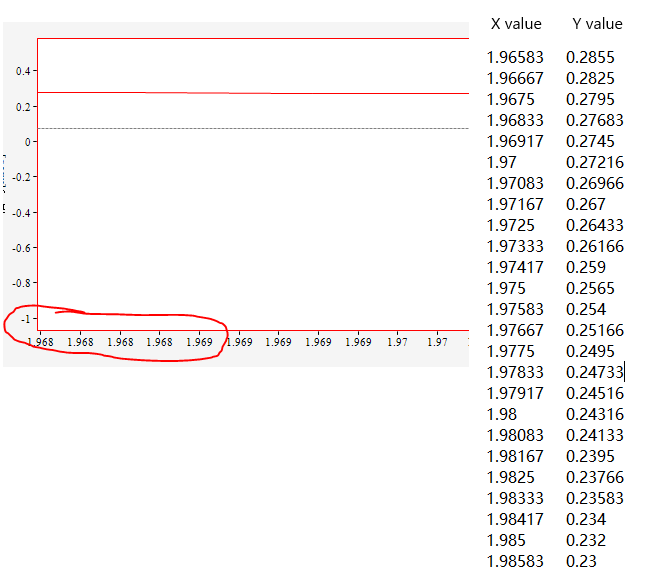

The normal chart is shown in 2.png, and the zoomed chart is shown in 3.png. The figure below shows some of the data.

[Christopher]

The line is composed of continuous points. When I zoom the chart, duplicate numbers appear on the axis. How should I avoid this situation.

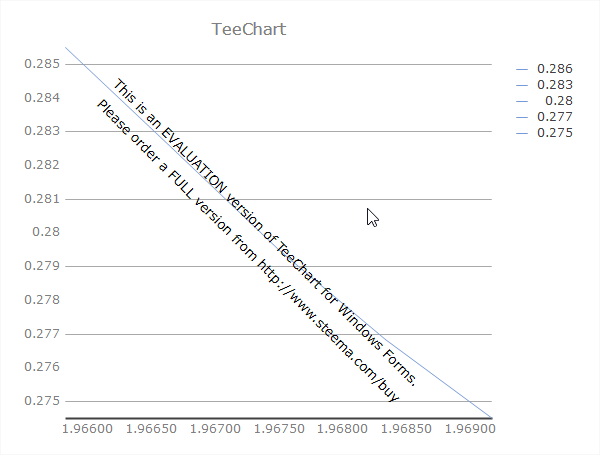

You can set the ValueFormat of series points and axis label values to any of the Standard or Custom numeric format strings, e.g.

Code: Select all

        private void InitializeChart()
        {
            _tChart.Aspect.View3D = false;
            var fastLine = new FastLine(_tChart.Chart);

            fastLine.Add(1.96583, 0.2855);
            fastLine.Add(1.96667, 0.2825);
            fastLine.Add(1.9675, 0.2795);
            fastLine.Add(1.96833, 0.27683);
            fastLine.Add(1.96917, 0.2745);

            _tChart.Axes.Bottom.Labels.ValueFormat = "N5";
        }


[Elite]

Thanks for your suggestions, the problem was successfully solved.
